SHJY-2000VA
ShunHong
N20001-1
| Quantity: | |
|---|---|
Product Features & Benefits
Enterprise whatsapp account: +86-13690698363
The SHJY-2000VA is a high-capacity, vertical step-down voltage converter designed for demanding household and kitchen appliances. Manufactured by Shunhong (est. 1987) with full OEM/ODM factory support, it combines robust electrical performance with a space-saving aesthetic.
110V & 100V Dual Output Sockets: Voltage Converter for Kitchen Appliances
The SHJY-2000VA is specially tuned for kitchenware, offering calibrated 100V for Japanese appliances and 110V for US equipment. Protects precision heating microchips in Japanese cookers from overvoltage.
Sleek White Design & Vertical Space-Saving Standing Posture
Crafted with a stylish white casing and clean aesthetic, the vertical standing posture saves over 50% counter area compared to conventional transformers, harmonizing effortlessly with modern white and stone kitchen decors.
Integrated Heavy-Duty Power Cord with Sealed Strain Relief
Features an integrated 1.2m heavy-duty power cord with 1.0mm² flame-retardant copper conductors. Permanently sealed cord entry eliminates contact sparks, loose connections, and cord loss for heavy culinary appliances.

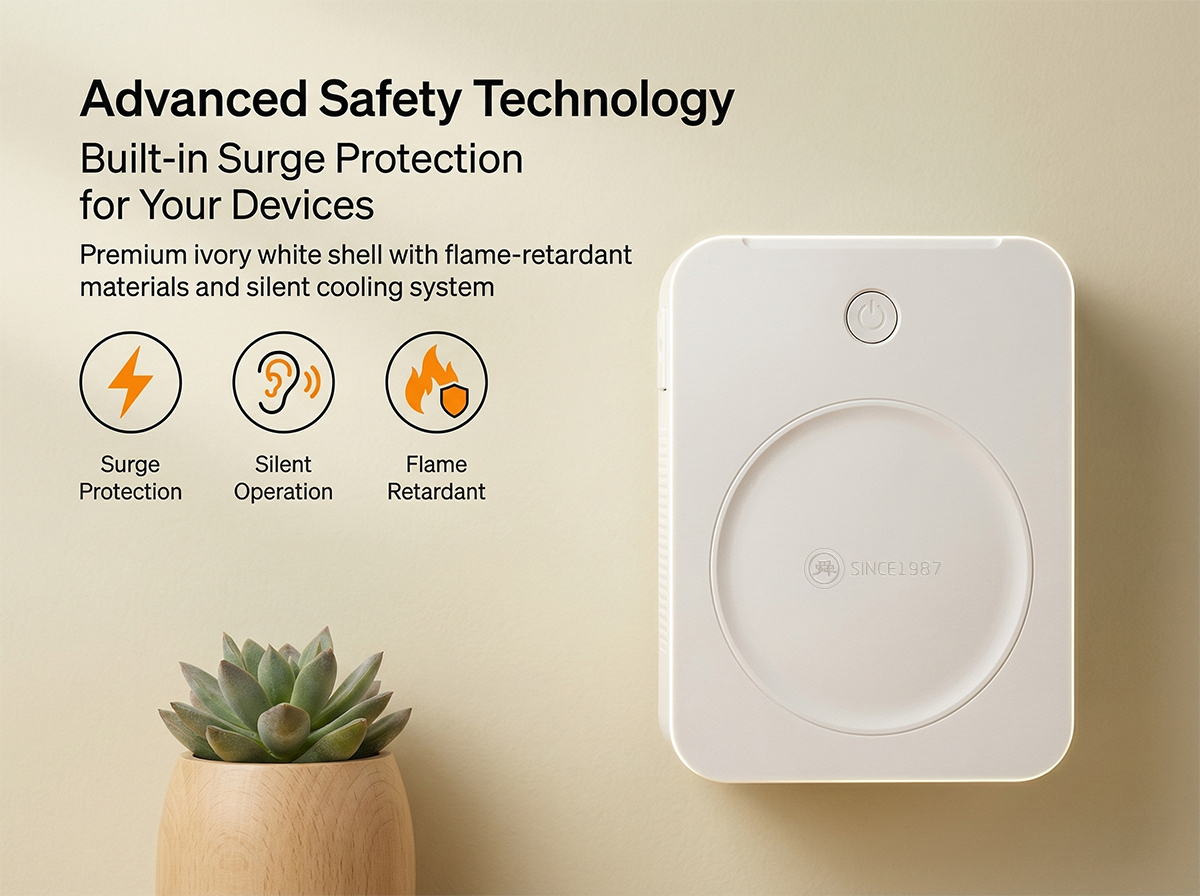

Multi-Protection System: Flame-Retardant Housing, Thermal Cut-Off & Overload Safeguard
Engineered with comprehensive multi-layer safety protection: high-grade flame-retardant casing resists intense heat, smart thermal sensors monitor internal core temperatures, and dynamic overload protection shields circuits against high current surges.
Continuous Duty Toroidal Core & Silent Operation Under Heavy Load
Utilizes a heavy-duty grain-oriented silicon steel toroidal core that delivers 80% efficiency, exceptionally low electromagnetic radiation, and minimal idle power consumption without mechanical fan hum.
Shunhong 38-Year Direct Factory Pedigree & Full OEM/ODM Customization
Engineered and built directly in Shunhong’s established factories since 1987. Benefit from robust raw material supply chains, rigorous quality compliance, and comprehensive OEM/ODM custom solutions.

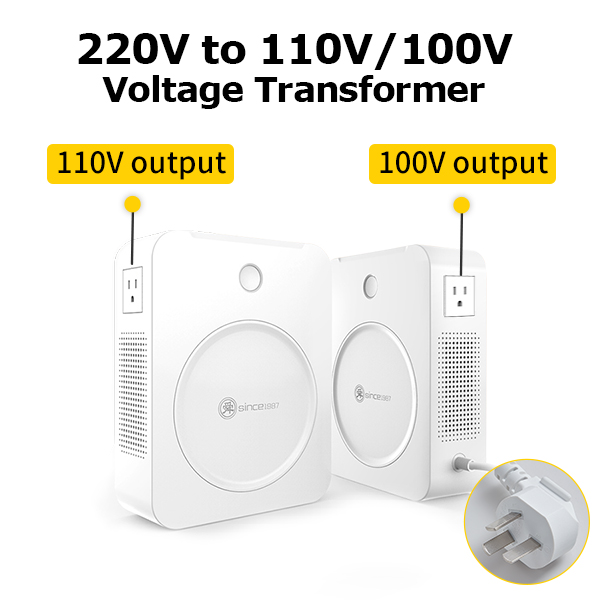

110V US & 100V Japan Voltage Calibration

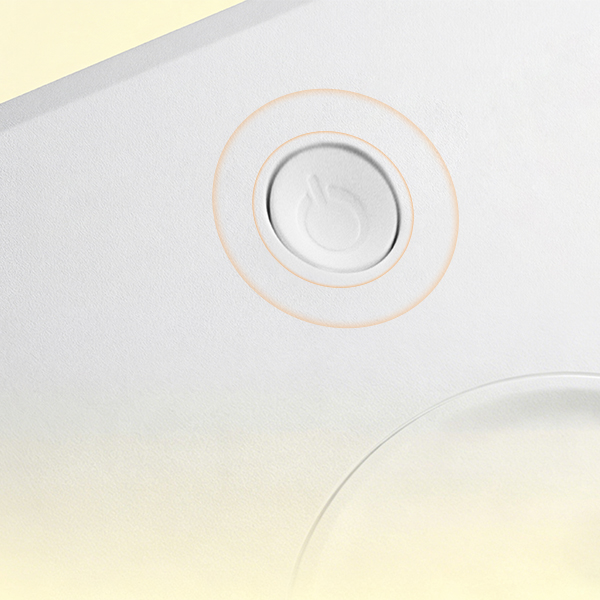

Power button

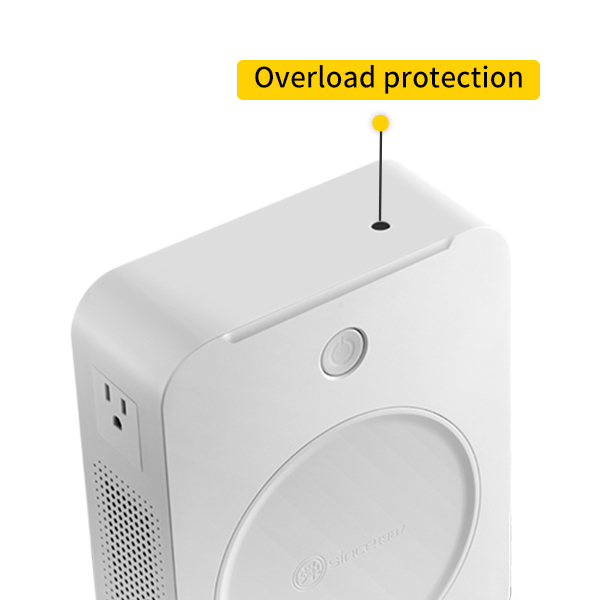

Short-circuit protection

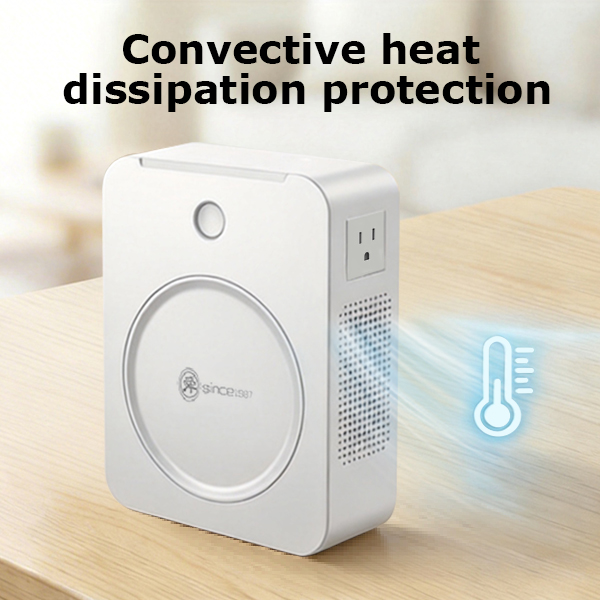

Bilateral convective heat dissipation

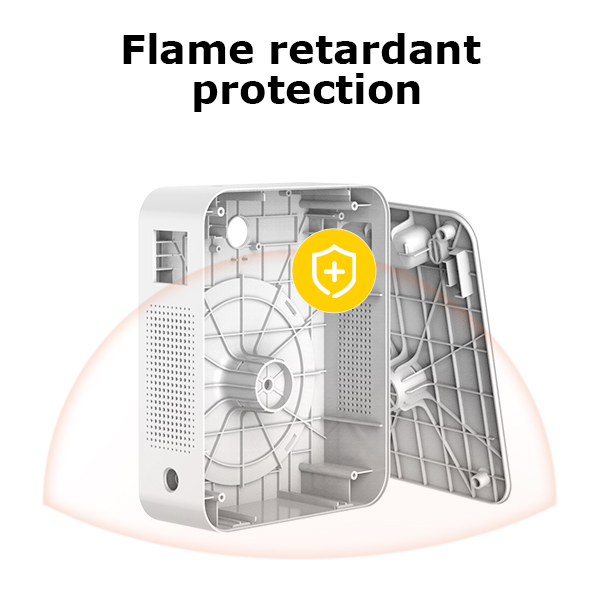

Flame retardant protection

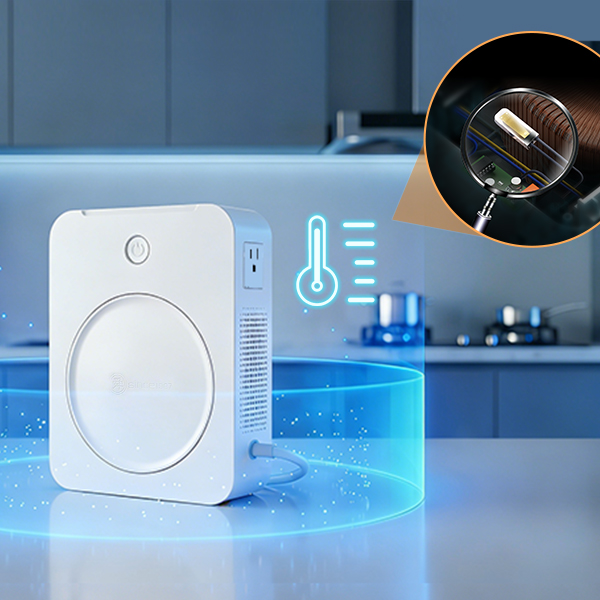

Temperature control protection
Technical Specifications
| Product Item Code | N20001 | Model Number | SHJY-2000VA | |
| Rated Capacity | 2000VA true continuous capacity (stable output without voltage drop) | Recommended Usage Power | Continuous load recommended below 1600W | |
| Voltage Conversion Spec | 220V to 110V & 100V Step Down (Dual independent outputs) | Port Configuration | Input standard 3-prong plug; Left 110V US socket + Right 100V US/JP socket | |
| Input Power Cable | Integrated sealed power cord (~1.2m length, 1.0mm² flame-retardant core) | Control & Indicator | Independent physical power rocker switch + visible LED status indicator | |
| Housing Design & Material | Pure white flame-retardant ABS casing, minimalist modern aesthetic | Core & Winding Material | High-grade aluminum toroidal winding + premium cold-rolled silicon steel core | |
| Cooling Method | Full-body convection cooling louvers, natural circular heat dissipation | Electrical Ratings | Max operating current 10A, no-load current 15–25mA, ultra-low loss & precise voltage | |
| Weight Specs (Net / Gross) | Net weight ~5.4kg / Gross weight with packaging ~5.8kg | Product Dimensions | 18.3 × 23.8 × 6.8 cm | |
| Package Dimensions | 31.0 × 28.0 × 15.0 cm | Safety Protection System | Flame-retardant protection, smart thermal protection, overload protection, short-circuit protection & non-slip pads | |
| Brand Heritage & Certs | Shunhong (Est. 1987, 38 years heritage), FCC, RoHS, CQC, CE certified | |||
Compatible Devices & Applications
Compatible Appliance List
Mid-to-High Wattage Kitchen Appliances, IH Rice Cookers & Bidets (<1600W)
|
|
Safety Sizing Rule & Surge Buffer Recommended continuous load is strictly 1600W or lower. Maximum through-current is 10A with 15~25mA idle loss. Equipped with integrated 1.0mm² power cord, flame-retardant casing, smart thermal sensor, and dynamic overload protection for worry-free continuous cooking. | |

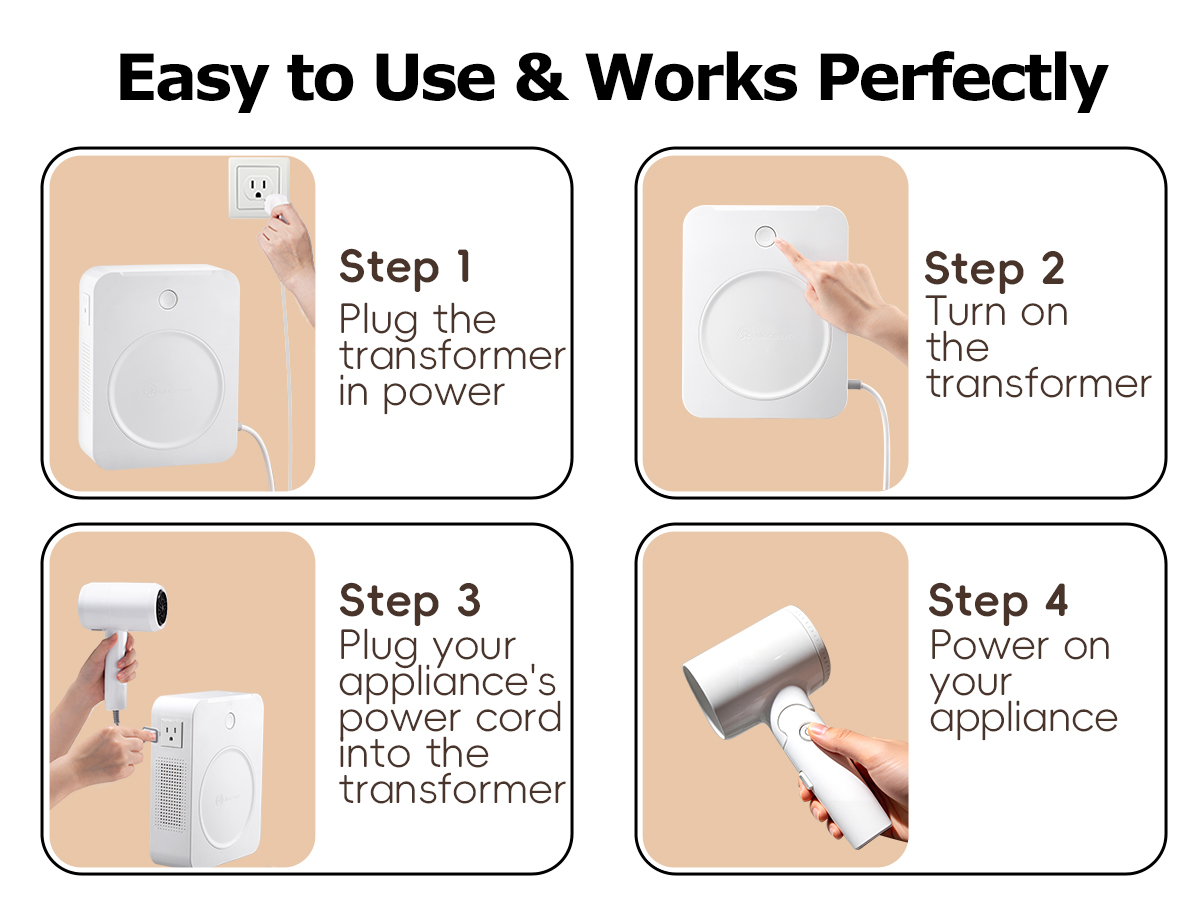

How to Use This Voltage Converter
Frequently Asked Questions About Voltage Converters
Q1: Can the SHJY-2000VA run a 1200W-1400W Japanese IH rice cooker continuously?
Yes, absolutely. The SHJY-2000VA delivers 2000VA rated power with a recommended continuous operating load under 1600W. Typical 5.5-cup and 1-sho Japanese IH pressure rice cookers draw 1100W to 1400W during intense boiling. The SHJY-2000VA easily handles continuous cooking cycles with precise 100V output without voltage drop.
Q2: Can I connect a Japanese smart bidet seat (like Toto Washlet) to the SHJY-2000VA?
Yes. Japanese domestic smart bidet seats operate on 100V. Instant-heating models draw between 1000W and 1400W when actively heating water, well within the SHJY-2000VA 1600W continuous threshold. Its flame-retardant ABS housing and eight-tier linked safety protections ensure dependable, worry-free operation.
Q3: Can I run an American 110V KitchenAid stand mixer on this converter?
Yes. US KitchenAid Artisan and Pro stand mixers operate at 110V and draw between 300W and 600W. When kneading heavy dough, motor inrush currents occur. The SHJY-2000VA handles continuous loads up to 1600W and up to 10A current, delivering strong, stable power through the left-side 110V US socket without speed loss.
Q4: What are the physical dimensions and weight of the updated SHJY-2000VA?
The SHJY-2000VA features an optimized chassis measuring 18.3 × 23.8 × 6.8 cm with a package size of 31 × 28 × 15 cm. It has a net weight of approximately 5.4KG (5.8KG gross with packaging). Its sleek white flame-retardant casing and full-surface convective ventilation dissipate heat naturally without fan noise.
Q5: How does the multi-protection system safeguard high-wattage kitchen appliances?
The SHJY-2000VA is fortified with a multi-protection matrix: high-temperature flame-retardant casing, smart thermal overheat cut-off sensor, and dynamic overload protection. If an overload or abnormal temperature rise occurs during extended boiling, power is instantly cut off to safeguard your appliances, resetting safely once cooled down.
