SHJY-2000VA
N20003
| Quantity: | |
|---|---|
Product Features & Benefits
Specially engineered for high-wattage Japanese appliances, the Shunhong SHJY-2000VA (N20003) provides precise step-down conversion from standard 220V power down to dual heavy-duty 100V outputs. Its sleek pure-white fire-resistant ABS casing blends seamlessly into contemporary kitchens, safely powering microcomputer IH rice cookers, heating blenders, air fryers, and salon dryers without voltage distortion.

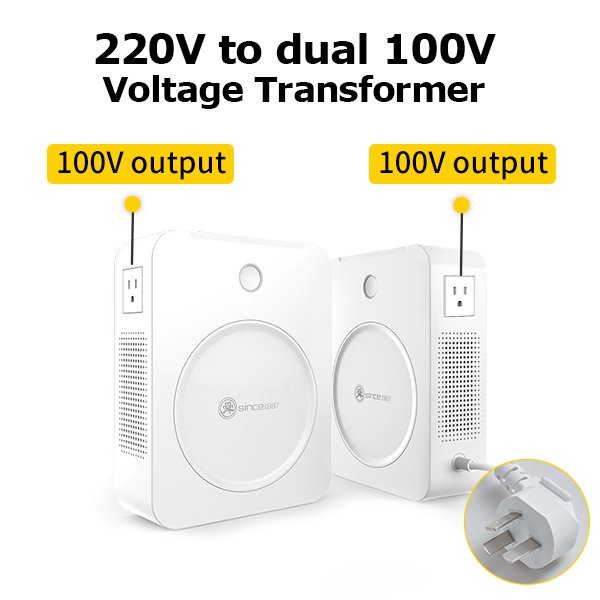

Dual Bilateral 100V Heavy-Duty Outlets
Features bilateral heavy-duty Japanese/US 3-prong sockets with isolated independent circuits. Delivers simultaneous calibrated 100V power across both outlets, enabling you to run an imported IH rice cooker alongside an electric stew pot without extra power strips or tripping.
Heavy Toroidal Silicon Steel Core
Constructed from high-permeability cold-rolled grain-oriented silicon steel wrapped in high-density aluminum wire. Filters out domestic utility harmonics, prevents voltage drift, and maintains rock-solid 100V voltage stability throughout demanding 60-minute cooking cycles.
Sleek Minimalist White Fire-Resistant Housing with Integrated Heavy Cable

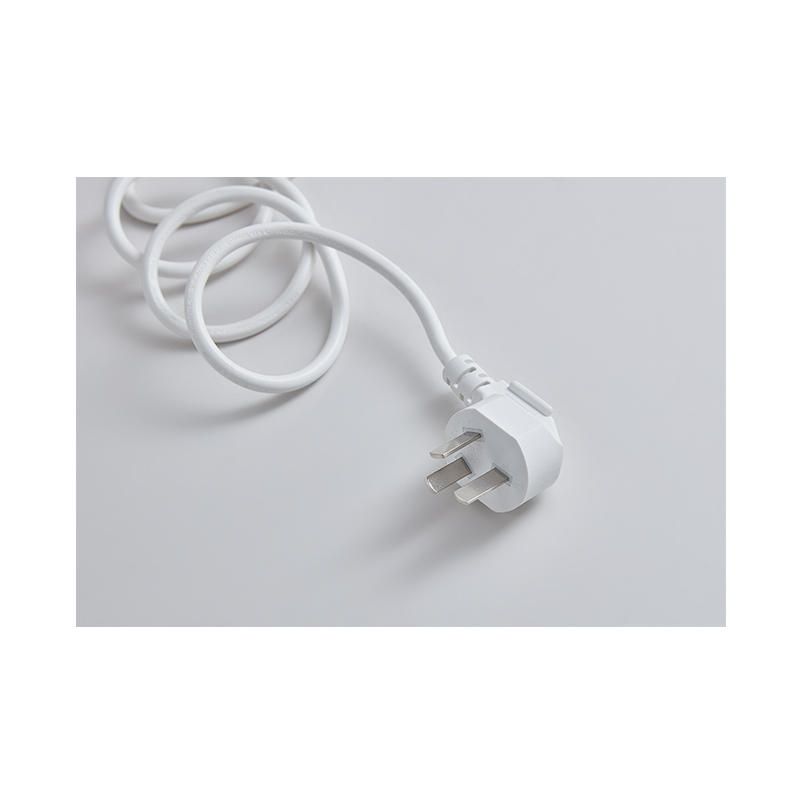

Engineered from high-impact, fire-resistant ABS+PC that effortlessly withstands kitchen steam, heat, and splashes. Combined with a molded 1.2m heavy-duty power cable that eliminates loose plugs, terminal arcing, and cord wear under heavy electrical loads.
8-Fold Intelligent Linked Safety System with Automatic Fault Recovery
Comprehensive multi-protection network integrates thermal cut-off sensor, millisecond short-circuit shutoff, EMC radiation suppression, leakage cut-off, fireproof housing, dual-sided convection vents, anti-slip base pads, and auto-restart once faults are resolved.
Whisper-Quiet (<20dB) Toroidal Operation & Civil Aviation Compliance
Toroidal core delivers smooth, hum-free operation below 20dB without noisy electric fans. Weighing ~5.4kg with no unshielded magnets or liquid electrolytes, it easily complies with domestic civil aviation luggage and high-speed rail security regulations.
Dual 220V output transformer

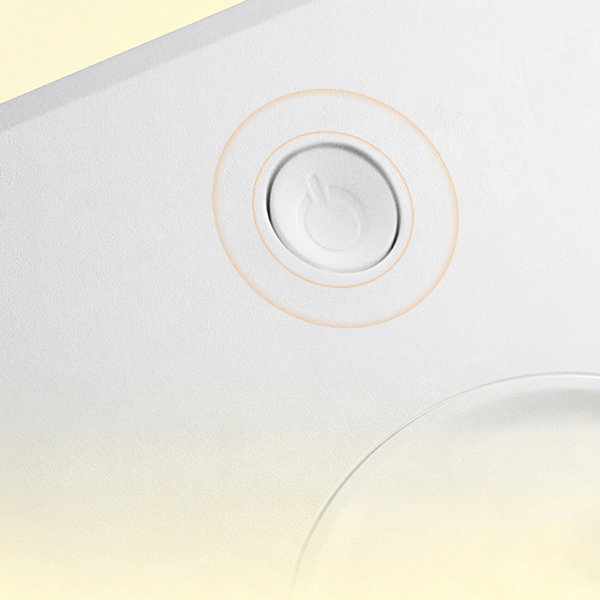

Power button

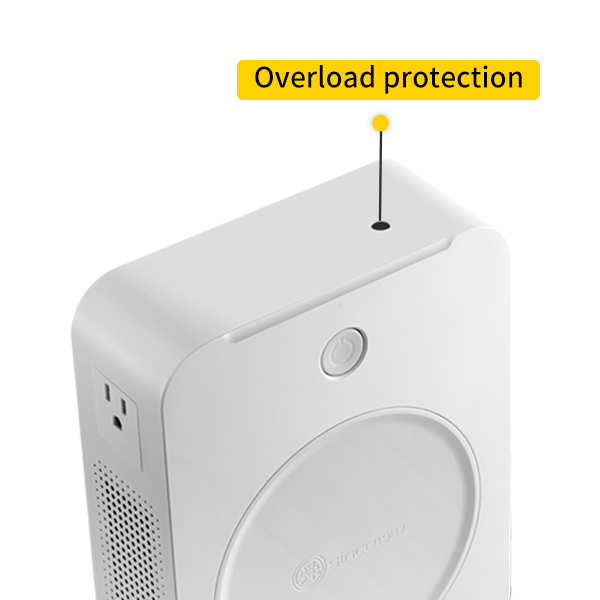

Short-circuit protection

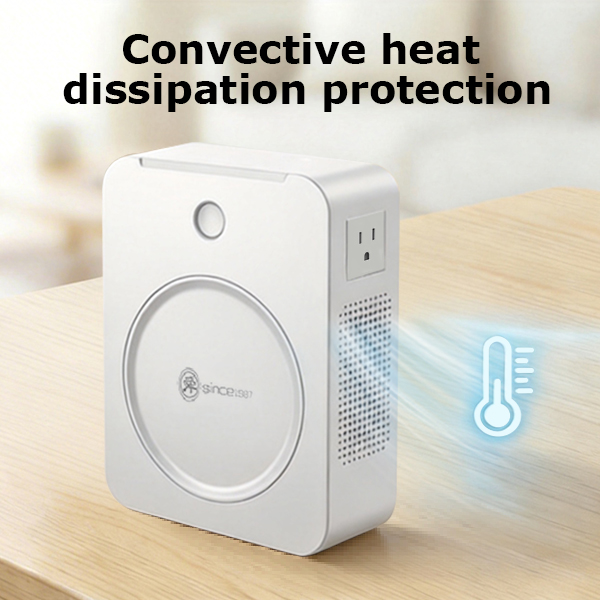

Bilateral convective heat dissipation

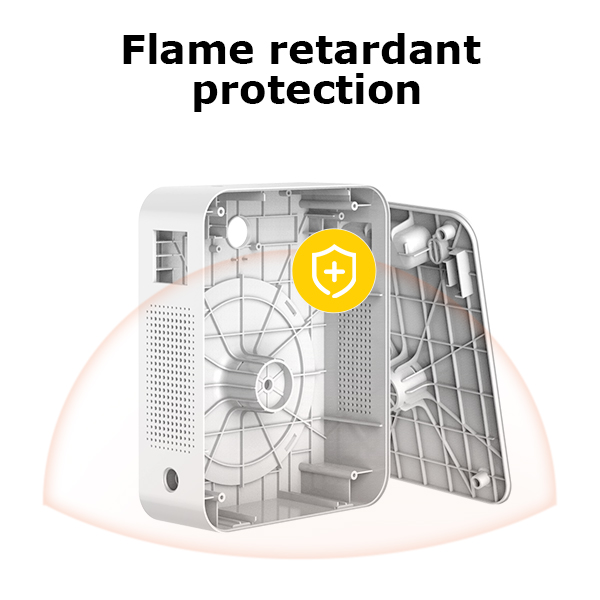

Flame retardant protection
Temperature control protection
Technical Specifications
| Product Model | SHJY-2000VA（N20003） | Rated Apparent Power | 2000VA (Peak Capacity) | |
| Voltage Transformation Direction | 220V to Dual 100V Step-Down | Frequency | 50Hz / 60Hz | |
| Net Weight | Approx. 5.40 kg (11.90 lbs) | Gross Weight (With Box) | Approx. 5.80 kg (12.79 lbs) | |

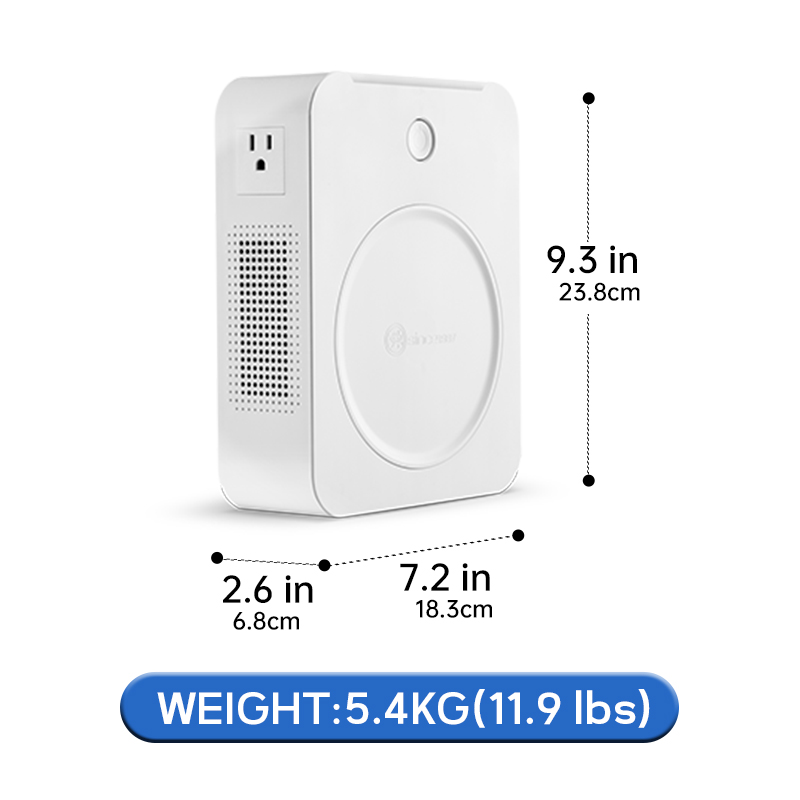

| Product Dimensions (L×W×H) | 18.3 × 23.8 × 6.8 cm (7.20 × 9.37 × 2.68 in) | Package Dimensions (L×W×H) | 31.0 × 28.0 × 15.0 cm (12.20 × 11.02 × 5.91 in) | |
| Input Connection Type | Integrated Power Cable | Output Socket Layout | Bilateral Dual 100V Heavy-Duty Sockets | |
| Core & Winding Architecture | High-Flux Cold-Rolled Toroidal Silicon Steel + Heavy Aluminum Wire Coil | Power Conversion Efficiency | ≥ 90% | |
| No-Load Current | 15~25mA | Maximum Rated Current | 10.0A Max Load Current | |
| Safety Protection System | Thermal Cut-Off, Short-Circuit, Anti-EMC, Leakage Lock, Fireproof | Enclosure Material & Finish | High-Impact Flame-Retardant ABS+PC Engineering Plastic | |
| Cooling Method | Stereoscopic Convective Air Ventilation Grid | Control Interface | Heavy-Duty Rocker Switch + High-Luminance LED Power Indicator | |
| Compliance & Quality Standards | CE, RoHS, FCC, CQC Certified | Recommended Continuous Duty | Recommended Continuous Load Under 1600W |
Compatible Devices & Applications
Compatible Japanese 220V Appliance
Recommended Continuous Load Under 1600W
|
|
The SHJY-2000VA carries a 2000VA peak power rating. For safety and durability in daily continuous cooking (such as rice cooking or baking that lasts 30-60 minutes), the continuous appliance power must be kept below 1600W (standard 80% continuous duty rating). Appliances involving motor startup surges (like food blenders) or high heat cycles (like air fryers) require adequate safety headroom. | |

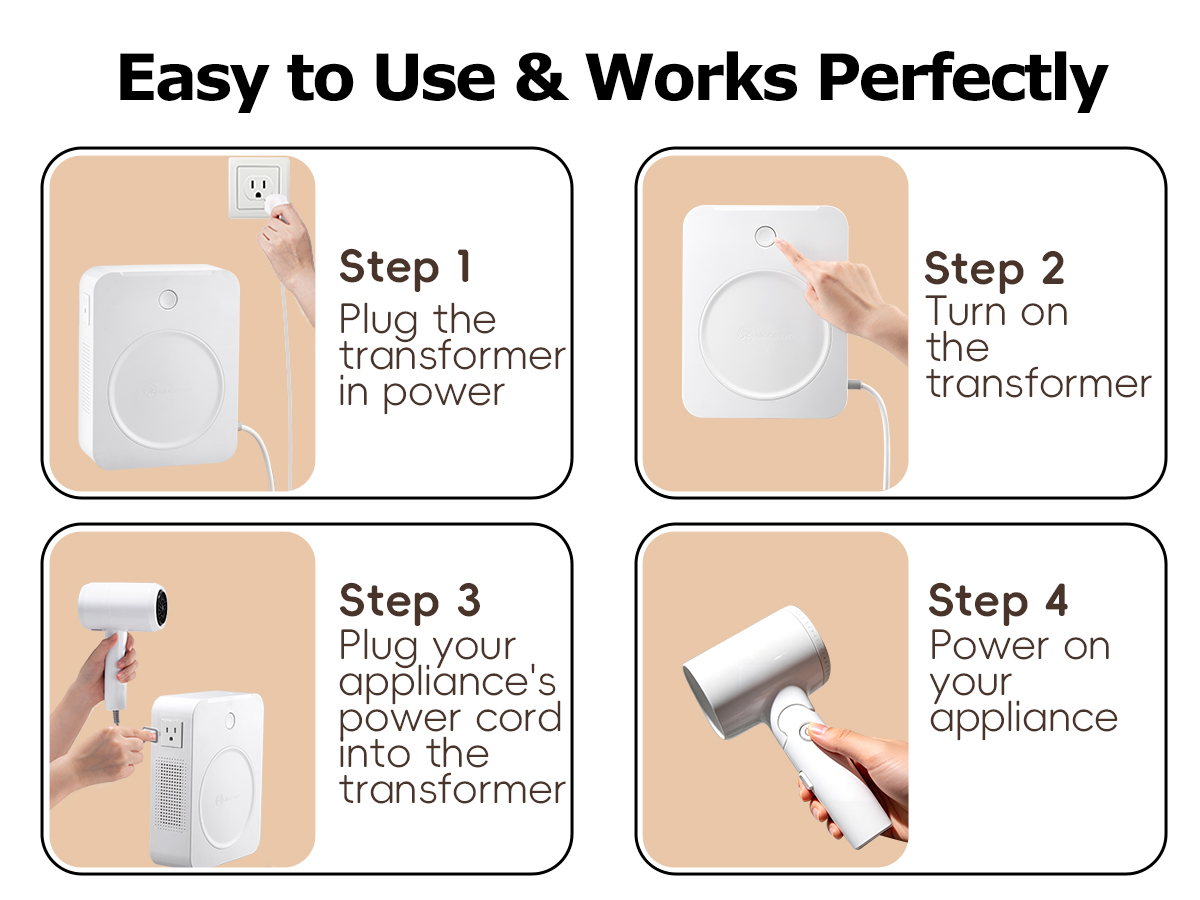

How to Use This Voltage Converter
Frequently Asked Questions About Voltage Converters
Will the Shunhong SHJY-2000VA run an imported Japanese 100V IH smart rice cooker in China without burning the microcomputer board?
Not at all. Japanese IH rice cookers utilize electromagnetic induction heating elements and microcomputer chips that demand a clean 100V sine wave. The Shunhong shjy-2000va 220v to 100v step down transformer provides clean, stabilized 100V power with ultra-low harmonic distortion and zero voltage collapse, allowing your IH cooker to cycle heating stages flawlessly.
What is the maximum continuous appliance wattage permitted on the SHJY-2000VA (N20003)?
The maximum recommended continuous load is 1600W. Although the transformer handles 2000VA apparent power, maintaining continuous duty below 1600W (80% load rule) prevents overheating and ensures a long lifespan. The SHJY-2000VA step down voltage converter 100v dual outlet is the perfect companion for 800W-1600W Japanese kitchen appliances.
Can I connect two appliances simultaneously, such as a 1200W IH cooker and a 300W food processor?
Yes, absolutely. The SHJY-2000VA features bilateral dual 100V sockets designed specifically for this scenario. With a combined wattage of 1500W (1200W + 300W), it sits comfortably beneath the 1600W continuous threshold. The dual socket 100v step down converter for japanese blender delivers independent power across both sockets.
Does the 2000VA transformer generate disturbing electrical hum or heat when cooking for an hour?
No. Thanks to its tightly wound toroidal silicon steel core and bilateral convective airflow channels, operating noise remains below 20dB. Even after prolonged cooking, thermal rise remains well within safety thresholds, backed by smart thermal cut-off sensors. The heavy duty 220v to 100v step down converter 2000va ensures silent, cool operation.
