SHJY-800VA
ShunHong
N8004
Availability: | |
---|---|
Quantity: | |
Product Advantage
Our 800VA voltage converter is an efficient and reliable device for situations where a 100V power supply needs to be converted to a 220V power supply. It has a rated capacity of 800VA, which can meet the needs of most household appliances. Whether at home, in the office or on the road, our converters provide you with a stable and reliable power conversion service.
The converter adopts annular inner core and has high conversion efficiency, which can reach more than 80%.
It also has multiple protection features including overload protection, overheat protection and short circuit protection to keep your device and home safe.
The shell and power cord are all made of flame retardant plastic, lightweight and durable, non-flammable, and electrical appliances are safer to use.

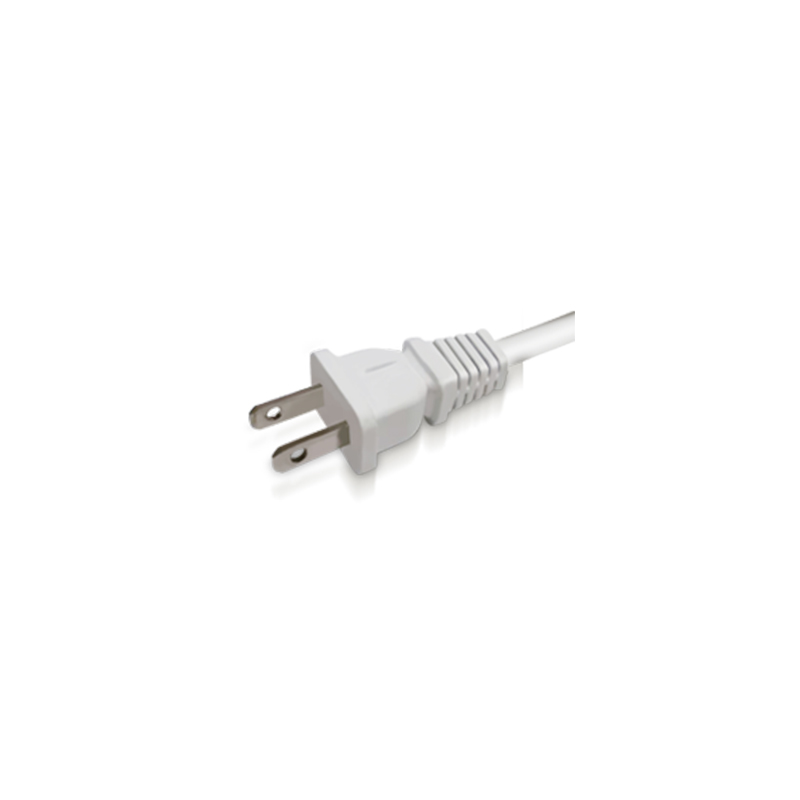

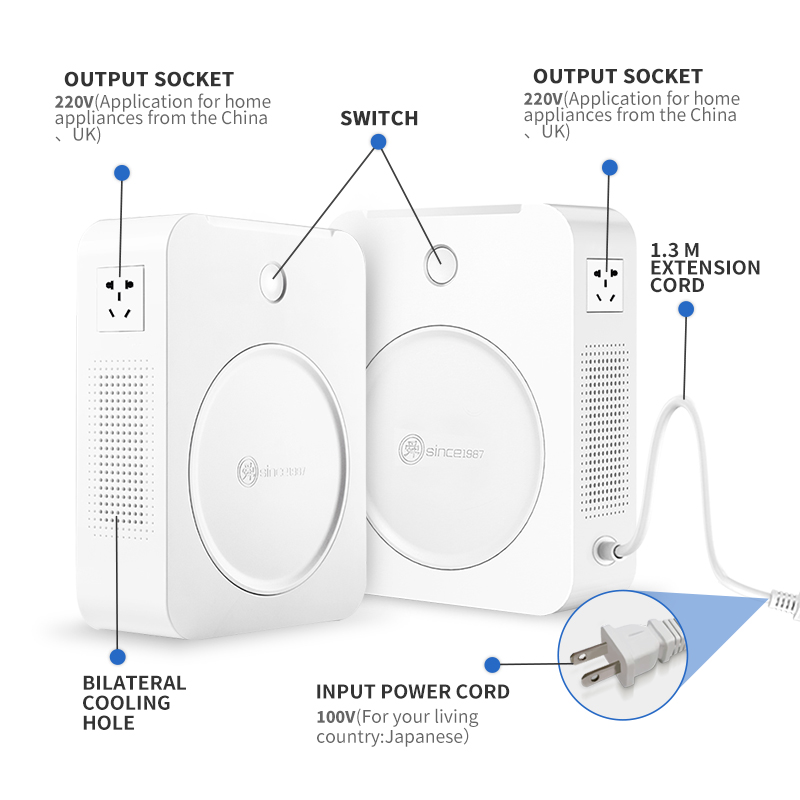

Using our 800VA voltage converters is simple. Just plug the input plug into a 100V power outlet, plug the output plug into a 220V electrical outlet, and then turn on the power switch. When you are finished, simply turn off the power switch and unplug it.
Technical Parameters
Product Model | SHJY-800VA |
Product name | 800W household power converter 100V to 220V |
Maximum applicable power | 800W* |
Rated Input Voltage | 100V~ |
Rated output voltage | 220V~ |
Rated capacity | 550VA* |
Rated Frequency | 50/60Hz |
Operating cycle | 30/60min |

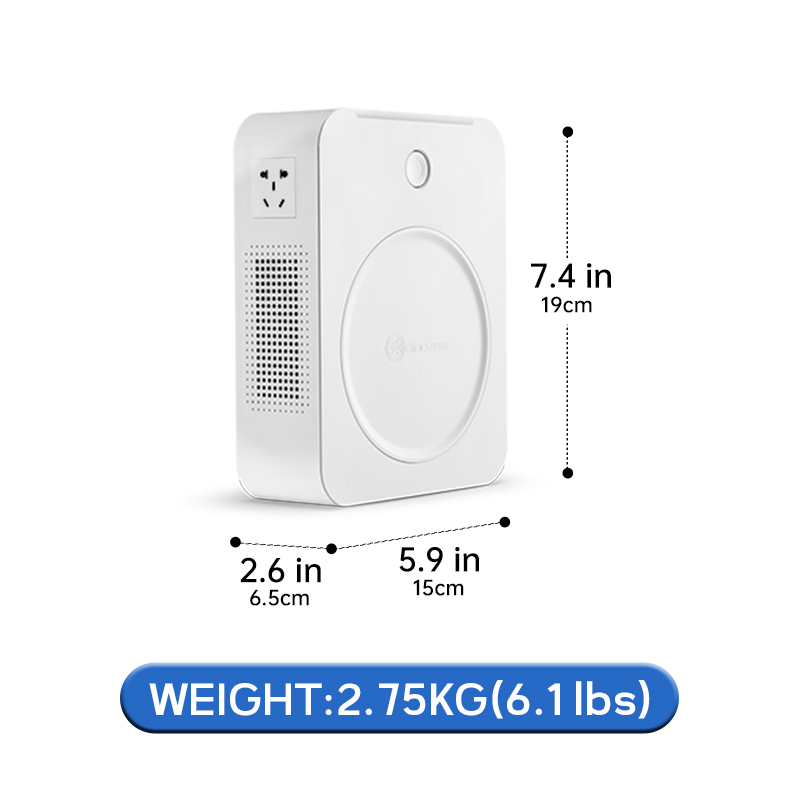

sizes | 19*15*6.5cm(7.48*5.9*2.55 inch) |
Size (with package) | 26*25*14cm(10.23*9.84*5.51 inch) |
weights | 3.4kg(7.49 lbs) |
Weight (with package) | 3.1kg(8.26 lbs) |
Type | Dry-type |
Safety Device-1 | Temperature Control |
Automatic power-off temperature | ≥80℃ |
Power cord square | 0.5 square |
Maximum Passing Current | 2.5A |
Safety Device-2 | short circuit protector |
Materials | Aluminum wire winding |
Core material | Ring transformer |
certificate | CE、FCC Etc. |
Product Uses
The 800VA voltage converter is suitable for use in the following scenarios and can be used with the following types of appliances:
International Travel:
When the grid standard of the country or region you're traveling to doesn't match your appliance, the 800VA voltage converter can convert the local voltage to the voltage your appliance needs. Suitable for mobile phone chargers, laptop computers, camera chargers and other small electronic devices.
Home Office:
When you purchase appliances or equipment with a voltage standard that doesn't match your local grid standard, 800VA voltage converters can help you use those devices. Suitable for printers, scanners, projectors and other office equipment.
Electrical shopping:
When you buy appliances or equipment overseas, 800VA voltage converters can help you convert the voltage of these devices to the grid standard in your location. Suitable for TV, audio, power tools and other large household appliances.
This voltage converter has a rated capacity of 800VA. Continuous use for more than 30 minutes is recommended for electrical appliances below 640W.For high power appliances, it is recommended to choose a higher capacity voltage converter.
When using the 800VA voltage converter, ensure that it does not exceed its rated capacity. It is recommended to use it within the recommended power for a long time.
Product Operate Guide
When using 800VA voltage voltage converter 100V to 220V, please pay attention to the following safety precautions:
Please ensure that the input voltage and voltage converter rated input are 100V. When the local voltage is unstable, the maximum input voltage is less than 120V. Too high a voltage may cause the voltage converter to fail to start.
Do not exceed the rated capacity of the transformer 800VA. It is recommended that the maximum power used in continuous use for more than 30 minutes does not exceed 640W, if the use time is very short-term use, it can support the use of higher power appliances. Exceeding the rated capacity may cause the transformer to be overloaded. If the voltage converter is overloaded for a long time, the overheat protection device will be turned on and the transformer will be shut down. Need to cool down before you can continue to use.
Do not expose the transformer to humidity, high temperature or near the fire source. This could damage the transformer or cause safety issues.
Before using the transformer, please ensure that the equipment and power lines do not have any damaged or exposed wires. If you find damage, stop using it and contact after-sales service.
When inserting and removing the plug, please ensure that the equipment and transformer are turned off to avoid electric shock or other safety problems.

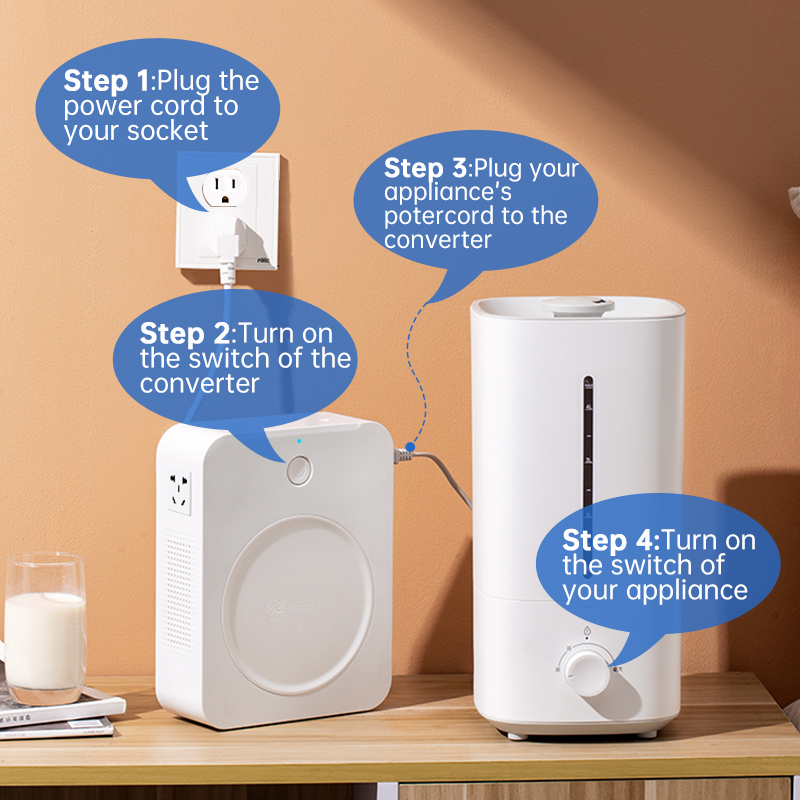

The transformer use process is as follows:
1, The transformer input plug into the power supply 100V socket, and ensure that the input voltage and the rated input voltage of the transformer are 100V.
2. Connect the electrical plug that needs to convert the voltage to the output outlet of the transformer.
3. Open the power switch of the transformer, and the blue indicator on the top of the machine will light up, which means that it starts to work.
4, When the electrical appliance is used, turn off the power switch of the transformer, and pull out the plug is best.
5, Voltage to converter as a voltage transfer tool, power consumption is very low. The actual power consumption can be concerned about the maximum power consumption of the appliance used.
FAQ
1、What certificates do your products have?
*Our voltage converter products have obtained a number of international and domestic certificates, including but not limited to CE certification, ROHS certification, FCC certification and so on. These certifications ensure that our products meet international standards for electrical safety, environmental protection, and electromagnetic compatibility.
2、What products does this voltage converter support?
*This voltage converter mainly supports 220V electrical devices, including but not limited to air purifiers, desk lamps, teeth cleaners, breast pumps and other household appliances. In addition, it is also suitable for some office appliances such as small printers, scanners, etc., as well as beauty salon and medical products such as home curling irons, home facial steamers, home pressure gauge, etc.
3、What after-sales service do you have?
*We provide comprehensive after-sales service, including product consultation, use guidance, fault repair and so on. Our customer service team will be ready to answer your questions and provide technical support. In addition, we also provide warranty service for a certain period of time to ensure your experience.
4、How do I choose the right transformer for my appliance?
*When choosing the right transformer for your appliance, you first need to consider the rated voltage and power of your appliance. Make sure that the output voltage and power of the selected transformer match your appliance. Secondly, consider the frequency and duration of use of the appliance to ensure that the selected transformer can provide stable power output. Finally, consider the brand, quality and price of the transformer and other factors to ensure that you buy a safe and reliable product.
5、What do I need to do before choosing a transformer?
* Before choosing a transformer, you need to know the rated voltage and power of your appliances, in order to buy the right transformer. In addition, you also need to understand the power supply voltage in your area to ensure that the selected transformer can work properly. Also, consider the environment and frequency in which the appliance will be used so that you can choose the right type and brand of transformer. Finally, get information about the brands and prices of transformers available in the market in order to make the right buying decision.
