2000VA Voltage Converter 110V To 220V; Made of Pure Copper Material; Double 220V Voltage Output。
You are here: Home » Products » Voltage Converter Transformer(Copper) » 2000VA Voltage Converter 110V To 220V; Made of Pure Copper Material; Double 220V Voltage Output。

2000VA Voltage Converter 110V To 220V; Made of Pure Copper Material; Double 220V Voltage Output。

5 0 Reviews
This 2000VA power copper boost transformer is specially built to solve the problem of voltage differences. It has the function of efficiently converting 110V voltage to 220V voltage, so that those European appliances that originally need 220V voltage can easily adapt to areas such as the United States where the voltage is 110V, achieving worry-free use.
  • SHJY-2000VA(copper)

  • ShunHong

  • TN20002

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

Product Advantage

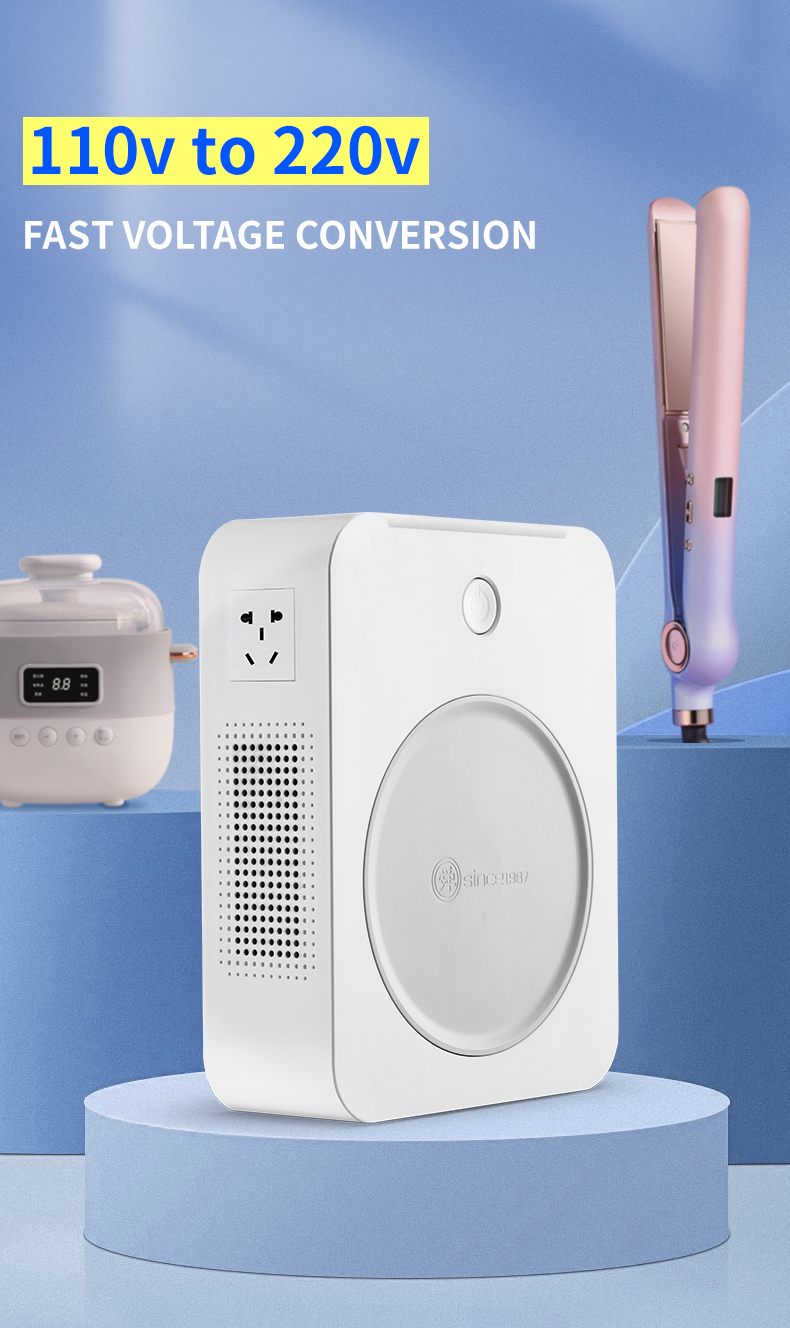

Since the introduction of this copper 2000VA power converter, it has won widespread praise in the market. After market sharpening and technical iteration, it has shown excellent stability in practical applications.T2000-1V2_02
Market Recognition and Technical Innovation
With a sales record of over 10,000 units, this household voltage converter has firmly established itself in a highly competitive market. After five years of market testing and user feedback, its excellent performance has been widely recognised. Meanwhile, through continuous technological advancement and R&D, we have carried out in-depth optimisation at the level of accessory materials and design, further enhancing the performance and reliability of the product to meet the growing needs of users.

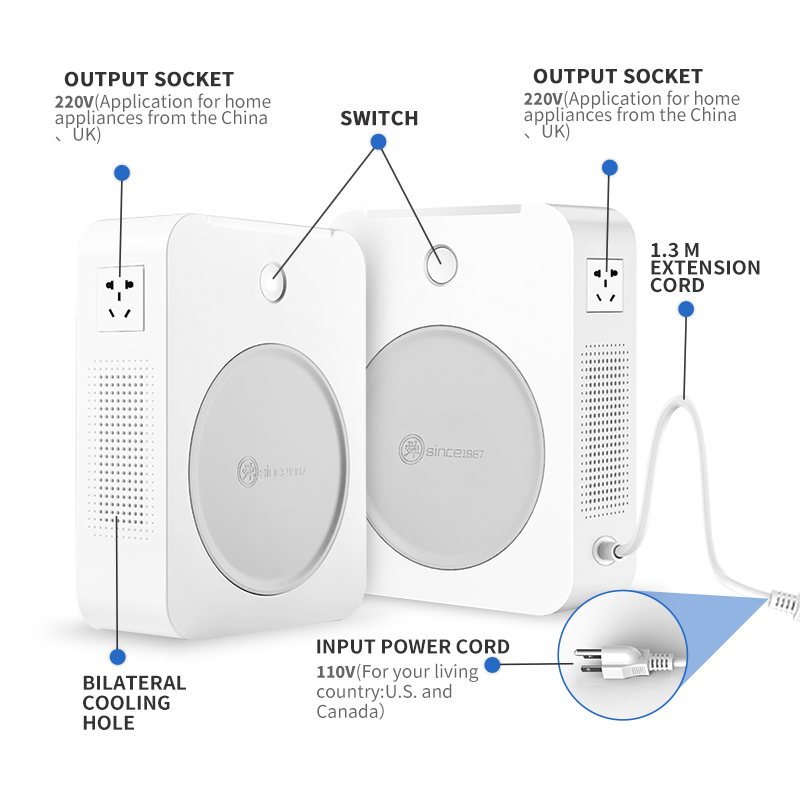

Stable voltage, dual-port efficient output
This step-up transformer adopts advanced dual-port design, both left and right sides can output 220V stably, providing users with more flexible use options. In a scenario where two appliances are used at the same time, stable operation can be achieved by ensuring that the total power is controlled within 70% of the maximum power of the transformer. This innovative design greatly improves the practicality and convenience of the product, bringing users a more comfortable power experience.

Excellent material, excellent design
We choose single-phase toroidal core as the core component of this power converter to ensure its stable operation and high conversion rate. This design not only reduces energy loss, but also improves the conversion efficiency, bringing users more economical power costs. At the same time, we use high-quality raw materials to ensure the durability and long-term stability of the transformer, providing users with a more secure experience.

Multiple safety protection mechanisms
In order to ensure the safety of users, this voltage converter has been fully considered in terms of safety. Its shell and internal power cord are made of flame retardant materials, greatly reducing the risk of fire. In addition, we have equipped multiple safety devices such as temperature control protection, overload protection and short circuit protection. Together, these measures build a safe and reliable power environment, effectively preventing safety accidents that may be caused by voltage fluctuations or overloads, and providing users with a more secure power experience.T2000-1V2_04

Technical Parameters

Product Model SHJY-2000VA(copper)
Product name Copper 2000W household power converter 110V to 220V
Maximum applicable power 2000W*
Rated Input Voltage 110V~
Rated output voltage 220V~
Rated capacity 1350VA*
Rated Frequency 50/60Hz
Operating cycle 30/60min

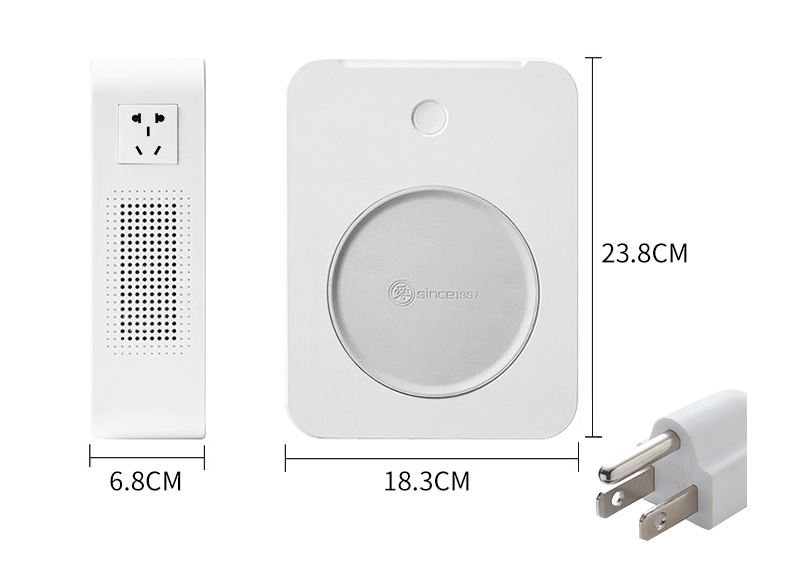

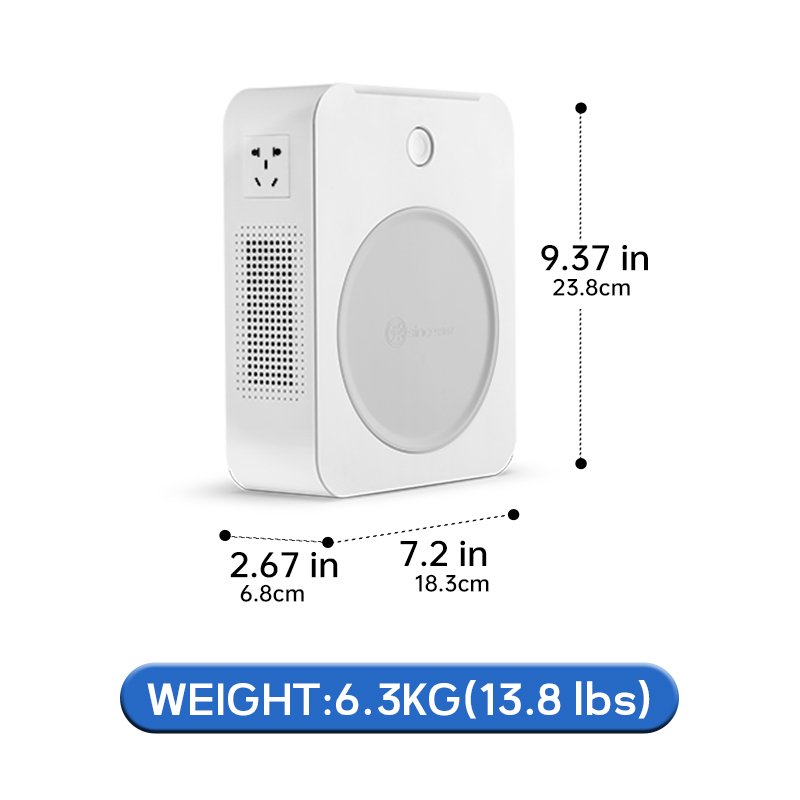

sizes 18.3*23.8*6.8cm(7.2*9.37*2.67 inch)
Size (with package) 31*28*15cm(12.2*11*5.9 inch)
weights 6.3kg(13.89 lbs)
Weight (with package) 6.7kg(14.77 lbs)
Type Dry-type
Safety Device-1 Temperature Control
Automatic power-off temperature ≥80℃
Power cord square 1.5 square
Maximum Passing Current 10A
Safety Device-2 short circuit protector
Materials Copper wire winding
Core material Ring transformer
certificate CE、FCC Etc.

Product Uses

T2000-1V2_10This 2000VA copper transformer, with the powerful function of 110V to 220V, a wide range of application scenarios, can easily meet the needs of various users.

In the home environment, no matter which country you are in with a rated voltage of 110V, this transformer can help you give your European or Chinese appliances a new lease of life. Whether it is a rice cooker for cooking food, a hair dryer for creating a hairstyle, or a small kitchen assistant such as a wall breaking machine and a chef machine, as long as their power does not exceed 1350W, this transformer can provide them with a stable 220V voltage, so that you do not need to replace the electrical appliances, you can enjoy the convenience of different countries.

In the field of office, this transformer also plays an indispensable role. For imported office equipment that uses 220V voltage, such as small printers, copiers and scanners, this transformer can ensure their stable operation, improve work efficiency and avoid the trouble caused by voltage mismatch.

In addition, for the pursuit of beauty and fashion friends, this transformer is also indispensable. European hair products such as curling irons, hair straighteners, face steamers and beauty machines usually require 220V voltage to show their best results. With this transformer, you can easily enjoy the care of these high-quality products without having to travel to Europe.

In the medical field, this transformer also plays an important role. For those imported medical equipment requiring 220V voltage, such as household oxygen generators, pressure gauges, etc., this transformer can provide stable voltage output to ensure the normal operation of the equipment and escort the health of the user.

In general, this 2000VA copper transformer 110V to 220V products, in the home, office, beauty salon and medical and other fields have a wide range of applications. Its stable performance and reliable security measures make it can play an excellent performance in a variety of scenarios, and bring users a convenient and comfortable experience.T2000-1V2_06

Product Operate Guide

Ensuring the safe, stable and efficient operation of power transformers is essential for equipment protection, failure prevention and user safety. Therefore, when using this copper 2000W, 110V to 220V transformer, it is particularly critical to follow certain precautions and processes.T2000-1V2_08
Power transformer usage notice
1. Waterproof and moisture-proof measures
Due to the straight-through internal core design of this voltage converter, the housing is not fully waterproof in order to optimize heat dissipation. Therefore, it is necessary to maintain the appropriate distance from the water source when in use to prevent water intrusion into the transformer, so as to avoid short circuit or other safety hazards.

2. Heat dissipation and ventilation requirements
The voltage converter will generate a certain amount of heat during operation, which is a normal phenomenon. In order to ensure its normal operating temperature, do not block the heat dissipation holes on both sides of the transformer, maintain air circulation, and contribute to effective heat dissipation. If the power transformer is found to be abnormally hot or emits burning odor during use, stop using it immediately and contact professionals in time for inspection.

3. Safety check before starting

Before turning on the power transformer for the first time, please conduct a thorough and detailed inspection. Ensure that the appearance of the machine is intact and all components are securely fastened. At the same time, the first boot should pay special attention to whether there is abnormal sound or abnormal situation, once found should immediately stop and carry out a detailed inspection.

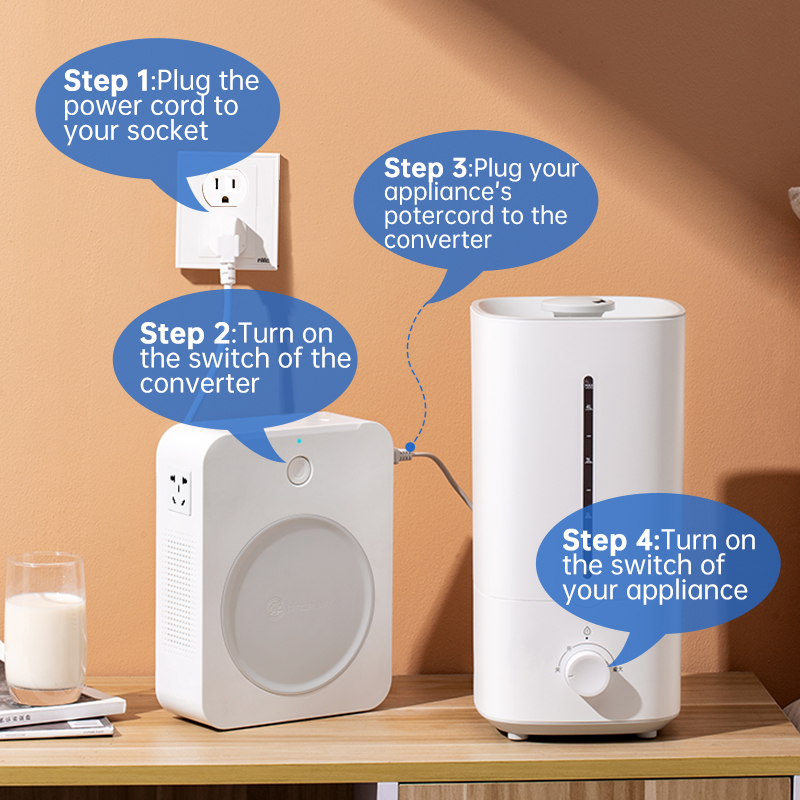

The use process of power transformer is as follows
1. First of all, carefully check whether the appearance of the voltage converter is intact and ensure that all spare parts are firmly fixed.
2. Then, connect the input plug of the voltage converter to the 220V power outlet to ensure that the connection is stable and safe.
3, then, press the machine on the key, so that the voltage converter power start.
4, finally, the need to use the 110V/100V electrical appliance and the voltage converter connection, and then turn on the electrical appliance, you can use normally.T2000-1V2_13

FAQ

1. What qualifications do you have for your products?
Our voltage converter products have obtained a number of international and domestic certifications such as CE certification, ROHS certification, FCC certification. These certificates demonstrate the excellent performance of our products in terms of electrical safety, environmental protection and electromagnetic compatibility, in full compliance with international standards.

2. Which devices can this voltage converter support?
This voltage converter mainly supports 110V and 100V electrical equipment, such as rice cookers, hair dryers, wall breakers, cook machines and other household appliances. In addition, it can also provide stable power support for office appliances such as small printers and scanners, as well as beauty salon and medical products such as curling irons, face steamers and pressure gauges.

3. What after-sales service do you provide?
We provide comprehensive after-sales service, including product consultation, user guidance and breakdown repair. Our customer service team is on hand to answer any questions and provide technical support. In addition, we also provide a certain period of product warranty service, so that you shopping worry-free.

4, How do I choose the right transformer to use my appliance?
When choosing the right transformer to use your appliance, please first confirm the rated voltage and power of the appliance. Make sure the output voltage and power of the selected transformer match your appliance. At the same time, the frequency and duration of use of the appliance are considered to ensure that the selected transformer can provide stable and reliable power output. In addition, factors such as the brand, quality and price of the transformer should be considered to buy a safe and reliable product.

5. What preparations do I need to make before purchasing a transformer?
Before purchasing a transformer, be sure to understand the rated voltage and power of your appliance in order to buy a suitable transformer. At the same time, you also need to know the power supply voltage in your area to ensure that the selected transformer can work properly. In addition, consider the use of the appliance environment and frequency, in order to choose the appropriate transformer type and brand. Finally, learn about transformer brands and prices in the market to help you make an informed purchasing decision.T2000-1V2_12T2000-1V2_15
