SHJY-3000VA(copper)
ShunHong
TN30004
Availability: | |
---|---|
Quantity: | |
Product Advantage

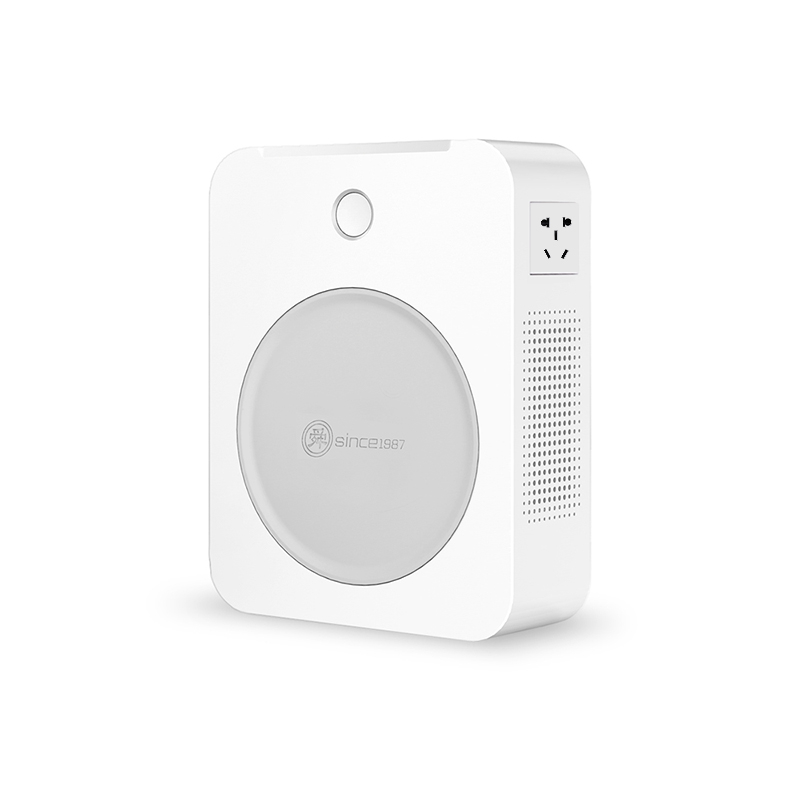

ShunHong 3000VA Pure Copper Transformer: Global Voltage Adaptation Specialist.
In order to meet the demand for electricity in different voltage environments around the world, Sun Hung has launched this professional-grade 3000VA pure copper transformer. The transformer is especially designed to support household appliances such as rice cookers, wall breakers, hair dryers, air purifiers, etc., to ensure their safe and stable operation in voltage mismatch areas. It is equipped with 100V to 220V step-down function, which can easily cope with various voltage differences.

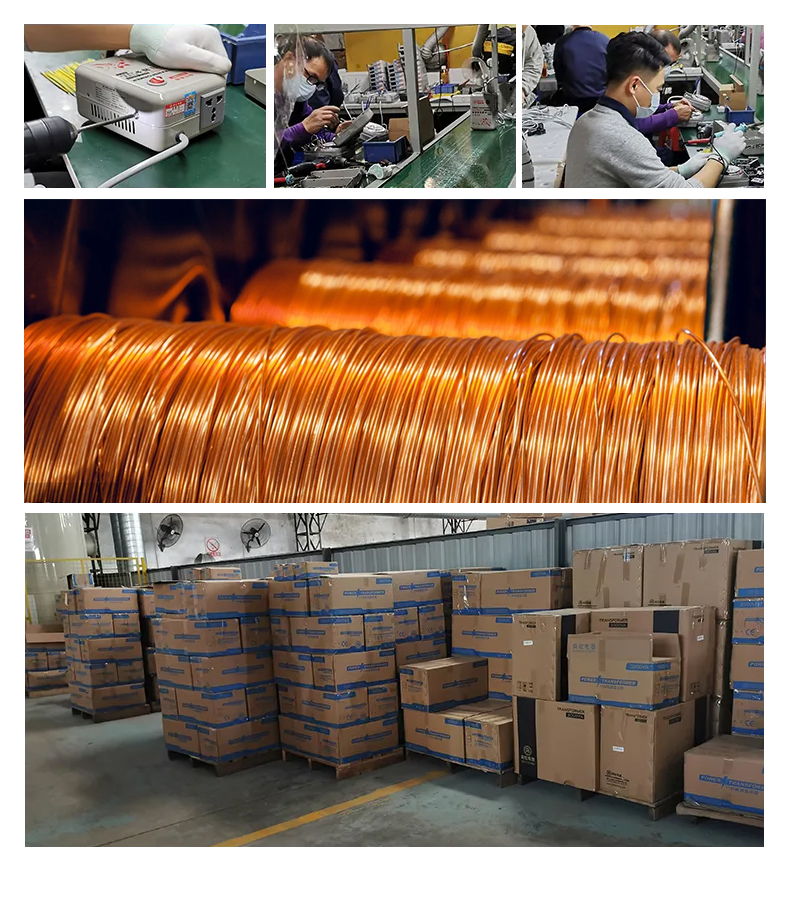

After 6 years of market testing, the Sun Red 3000VA pure copper transformer has won wide acclaim and good feedback from the market for its excellent performance and stable quality. The transformer adopts high-quality pure copper coils, which ensures sufficient materials and extremely small resistance, thus effectively reducing heat generation and prolonging service life.
In addition, the Sun Red 3000VA pure copper transformer is equipped with an advanced temperature control protection system, which automatically shuts down the transformer when the internal temperature is too high to ensure safe use. At the same time, its unique dual-current wiring design effectively isolates the electromagnetic interference between strong and weak power, avoiding the potential safety hazards that may be brought about by current stringing.
In order to further enhance safety, the Sun Red 3000VA pure copper transformer is also equipped with a short-circuit protector. In the event of a short circuit, the protector will automatically pop up and cut off the power supply, thus effectively protecting the electrical appliances and the user's personal safety. Whether for home use or commercial use, Sunhong 3000VA pure copper transformer is your reliable choice.
Technical Parameters
Product Model | SHJY-3000VA(copper) |
Product name | Copper 3000W household power converter 100V to 220V |
Maximum applicable power | 3000W* |
Rated Input Voltage | 100V~ |
Rated output voltage | 220V~ |
Rated capacity | 1900VA* |
Rated Frequency | 50/60Hz |
Operating cycle | 30/60min |

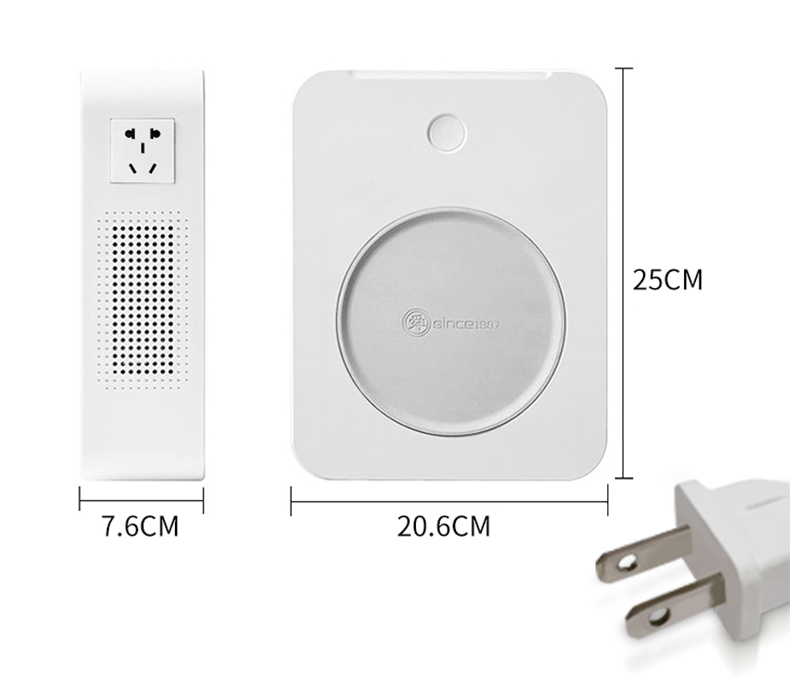

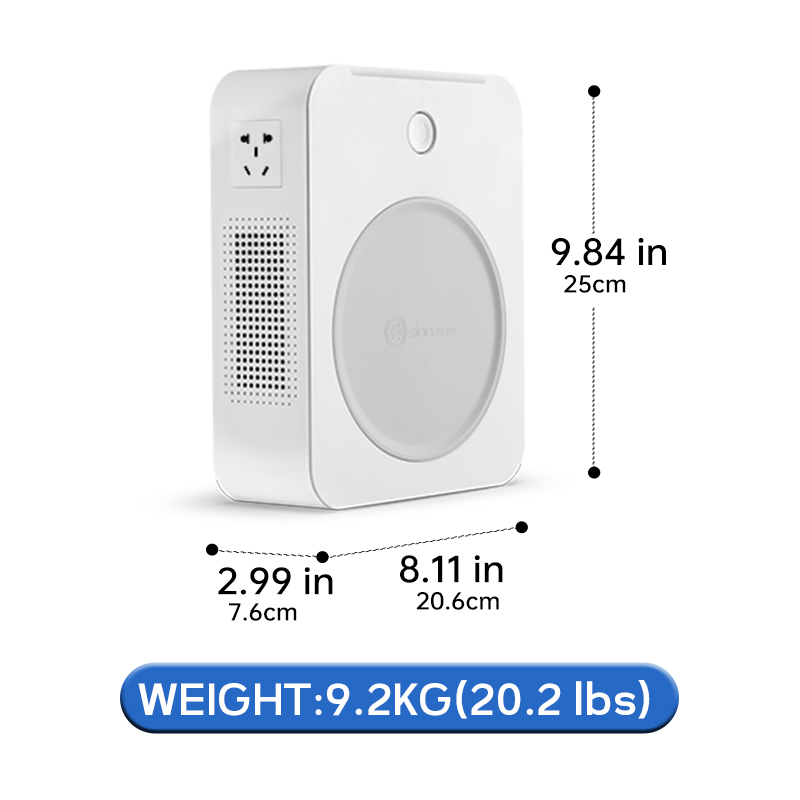

sizes | 25*20.6*7.6cm(9.8*8.19*2.99 inch) |
Size (with package) | 32*30*15.5cm(12.6*11.8*6.1 inch) |
weights | 9.2kg(20.28 lbs) |
Weight (with package) | 9.5kg(20.94 lbs) |
Type | Dry-type |
Safety Device-1 | Temperature Control |
Automatic power-off temperature | ≥80℃ |

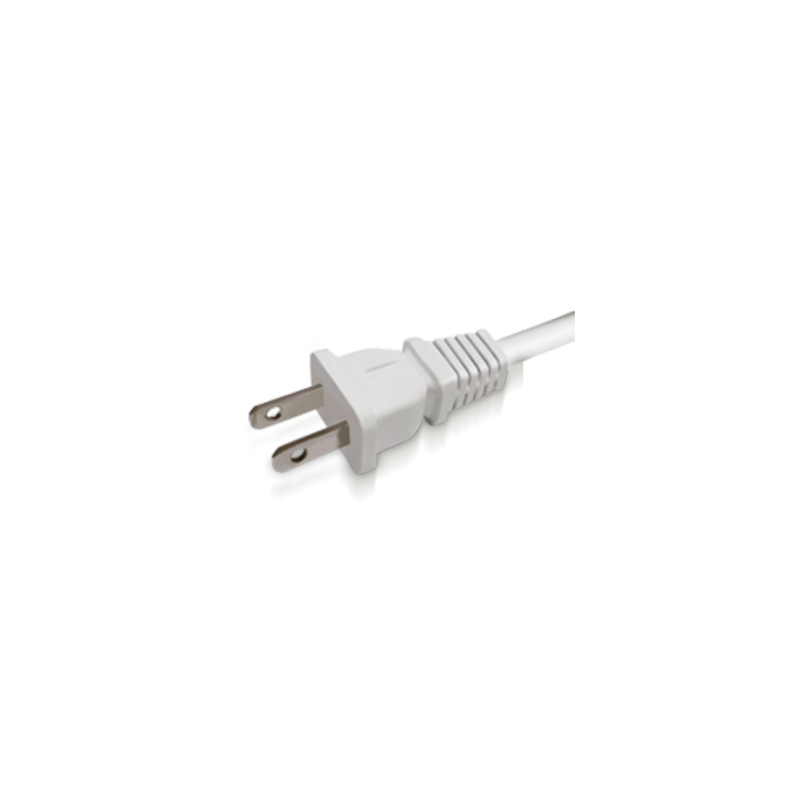

Power cord square | 1.5 square |
Maximum Passing Current | 16A |
Safety Device-2 | short circuit protector |
Materials | Copper wire winding |
Core material | Ring transformer |
certificate | CE、FCC Etc. |
Product Uses
Efficient and stable copper 3000W transformer: easy 100V to 220V voltage conversion, worry-free multi-scenario application.
This 3000W transformer made of high-quality copper has excellent 100V to 220V voltage conversion capability, which is not only suitable for home and office, but also meets the special needs of the beauty salon and medical industry, bringing users an efficient and stable voltage conversion experience.
A powerful assistant for home appliances:
For residents living in 100V countries who want to use European or Chinese appliances rated at 220V, this transformer will be your best choice. Whether it is a rice cooker, wall-breaker, chef machine, or beauty salon and other household appliances, as long as their power is under 1900W (taking into account the 30% power reserve of the transformer), they can be easily converted to other voltages by this transformer, so that you can enjoy the convenience of electrical appliances from different countries at home.
Stable companion for office equipment:
In an office environment, many imported devices such as printers, photocopiers, scanners, etc. may require 220V to work stably. This transformer can ensure these equipments run smoothly under 220V voltage, avoiding equipment damage or performance degradation caused by voltage mismatch, thus improving office efficiency.
A handy tool for the beauty salon industry:
European hairdressing equipment is often highly regarded by those seeking a high quality hairdressing experience. However, these devices often require 220V to work optimally. With this transformer, you can easily convert your local 100V voltage into the 220V required for your equipment, so you don't have to travel all the way to Europe to enjoy the professionalism of top-quality hairdressing products.
Reliable guarantee for medical equipment:
In the field of medical equipment, stable voltage output is crucial. For some imported medical equipment such as manometers, oxygen machines, etc., they often need 220V voltage to operate properly. This transformer can provide stable and reliable 220V voltage output for these medical equipments, ensuring that the equipments can operate normally at critical moments, providing solid protection for users with medical needs.

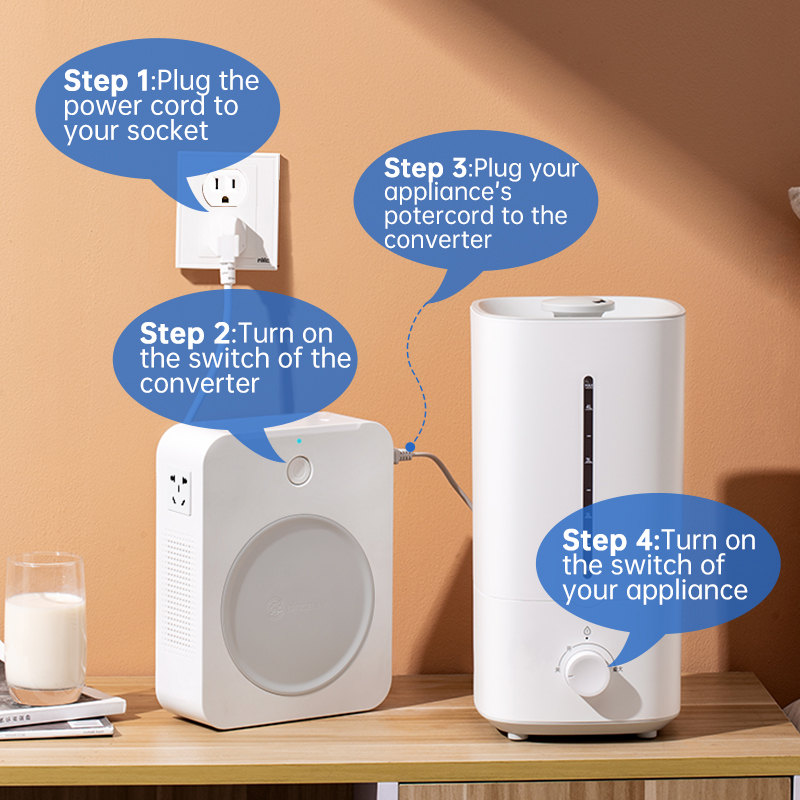

Product Operate Guide
Power Transformer Usage Guidelines and Precautions
First, waterproof moisture
This power transformer is designed to focus on the internal core components of the direct cooling effect, so the shell is not a large area of waterproof treatment. In order to ensure the use of safety, please be sure to pay attention to the following matters:
Use of environmental choices
please ensure that the power transformer is placed in a dry environment away from water sources to prevent water intrusion into the interior of the device, to avoid short circuits or other safety hazards.
Waterproof measures
If the use of the environment may be wet or water splash risk, please take appropriate waterproof measures, such as the use of waterproof cover or mat.
Second, heat dissipation and ventilation
The power transformer will generate a certain amount of heat during operation, which is a normal phenomenon. To ensure the normal operation and prolong the service life of the equipment, please pay attention to the following heat dissipation and ventilation matters:

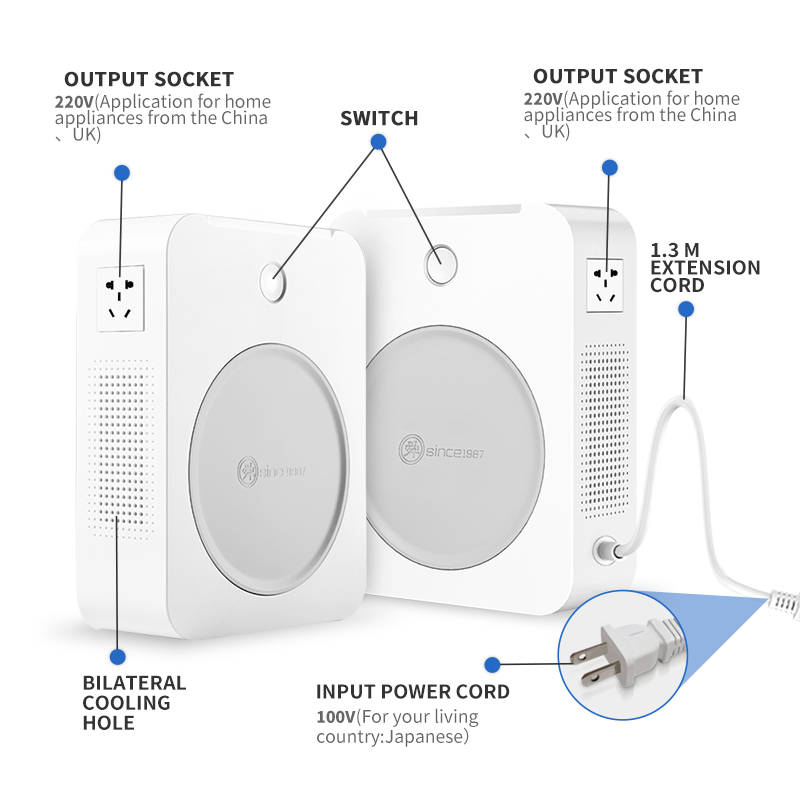

Keep the heat dissipation holes unobstructed: please do not block the heat dissipation holes on the left and right sides of the power transformer to ensure air circulation to promote heat dissipation.
Abnormal heat treatment: If in the process of using the power transformer is found to be abnormally hot or emit burning odour, please stop using it immediately and contact professional personnel for inspection and maintenance.
Third, boot check
In the first boot before use, please be sure to carry out a comprehensive inspection of the power transformer to ensure its normal operation and safety:
Appearance check
Ensure that the power transformer appearance is intact, no scratches, dents and other defects.
Parts fixed
Check whether the parts of the power transformer is fixed firmly, no loose phenomenon.
First time switch on listening
When switching on for the first time, please pay attention to whether the power transformer has any strange sound or abnormal situation. If there is any abnormal sound or performance, please stop the machine immediately for inspection and contact professional personnel for maintenance.
FAQ
Product certification and standards
Our voltage converter products have been rigorously tested and have received a number of international and domestic certifications, such as CE, ROHS and FCC. These certifications ensure that our products meet international standards in terms of electrical safety, environmental protection and electromagnetic compatibility, providing a safe and reliable user experience.
Supported electrical equipment
This voltage converter is designed for 220V electrical equipment, widely used in all kinds of household appliances, such as air purifiers, desk lamps, toothwashers, breast pumps and so on. At the same time, it also supports office appliances such as small printers, scanners, etc., as well as beauty salon and medical equipment such as home curling irons, home face steamers, home pressure gauges, etc.
After-sales service guarantee
We provide comprehensive after-sales service, covering product consultation, use guidance, fault repair and other aspects. Our professional customer service team is ready to answer your questions and provide technical support. In addition, we also provide a certain period of warranty service, to ensure that you buy worry-free.
How to choose the right transformer
When choosing a transformer suitable for your appliance, please first pay attention to the rated voltage and power of the appliance. Make sure the output voltage and power of the selected transformer match your appliance. Secondly, consider the frequency and duration of use of the appliance to ensure that the selected transformer can provide stable and continuous power support. Finally, combined with the brand, quality and price factors for comprehensive evaluation, choose safe and reliable products.
Preparation before selecting a transformer
Before purchasing a transformer, please first understand the rated voltage and power requirements of your appliance. Secondly, please understand the power supply voltage in your area to ensure that the selected transformer can adapt to the local voltage environment. At the same time, consider the use of the electrical environment and frequency, in order to choose the appropriate transformer type and brand. Finally, it is recommended that you have an understanding of the transformer brands and prices in the market in order to make an informed purchase decision.
