SHJY-60VA
ShunHong
TN61
Availability: | |
---|---|
Quantity: | |
Product Advantage
High efficiency transformer
The inner core of the product is pure copper, which not only has excellent electrical conductivity, but also ensures high efficiency and stability in the transformer process. Whether you are at home or traveling, it can provide you with a stable and safe voltage conversion service.
Flame-retardant housing
We understand the importance of safety, so the appearance of the product is made of flame retardant plastic. This material not only has good durability, but also can effectively prevent the occurrence of fire at critical times, adding a safety guarantee for your use.

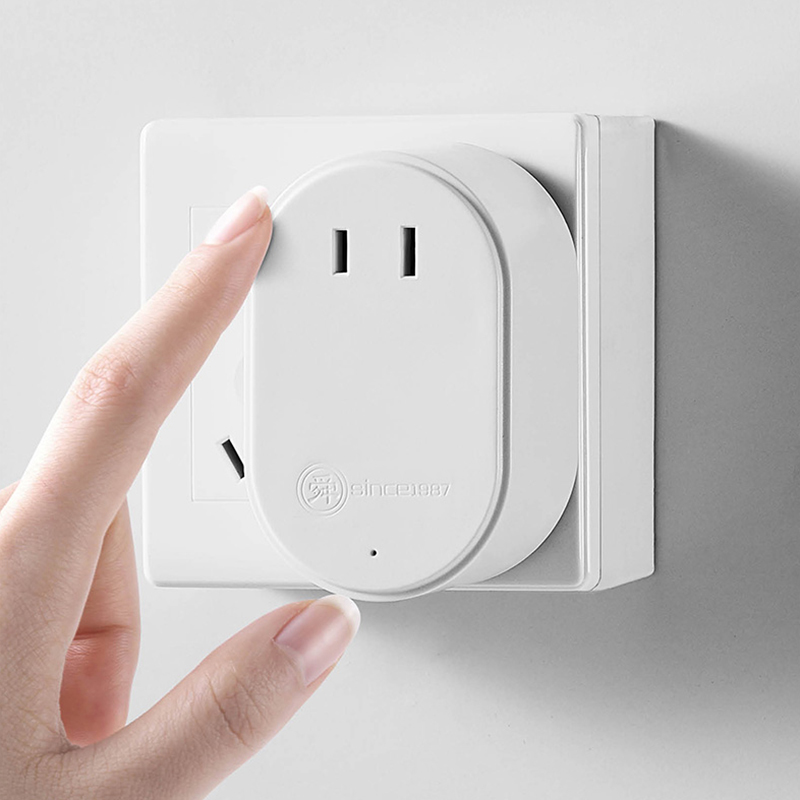

Plug and play
There is no need for complicated setup or switching operations, just connect your electrical device to the converter, plug it into the power supply, and turn the voltage in one second. Simple and fast, make your life more convenient.
Application scenario

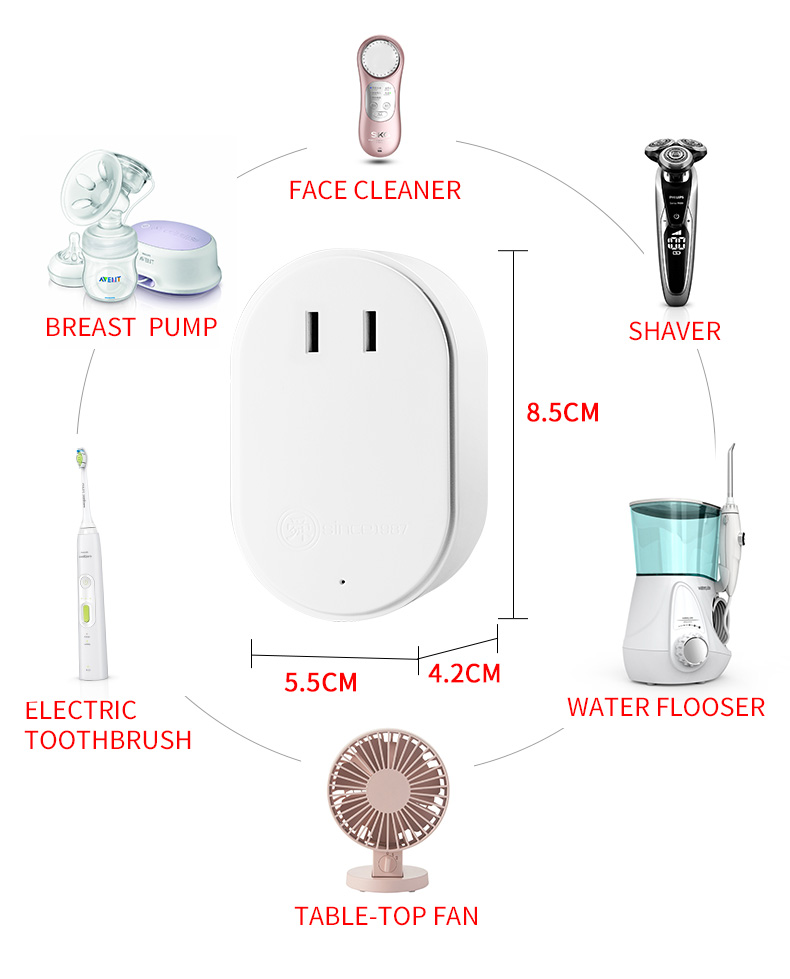

This converter is especially suitable for small power electrical appliances, such as electric toothbrushes, small massagers, hair clippers, teeth washers, etc. It is also an indispensable assistant for users who need to use American appliances in China. Whether for home use or business travel, it can provide stable voltage support for your electrical equipment.

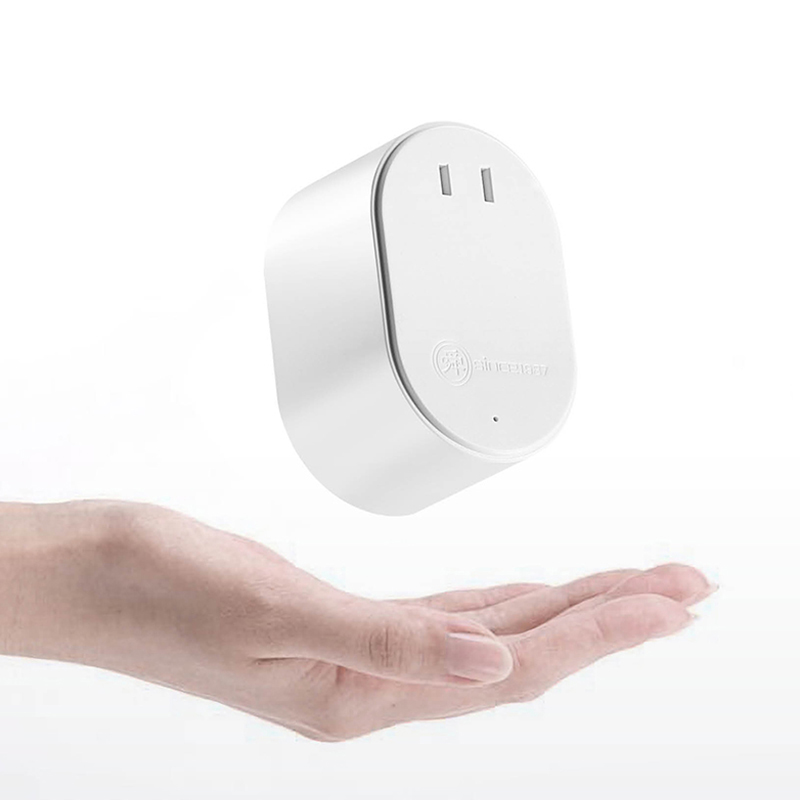

portable
The lightweight and compact design of the product allows you to easily put it in a backpack or suitcase, which is convenient for you to use anytime, anywhere. Whether it is for business, travel or camping, it is the ideal voltage conversion companion for you.
Temperature control protection
In order to further enhance the safety of the product, we have also added a special temperature control protection function. When the internal temperature of the product is too high, the function will automatically start, cut off the power supply, and prevent the device from overheating and causing safety accidents.
Family and business use
Whether it is daily use at home or temporary needs on business trips, this voltage converter can meet your various voltage conversion needs. By choosing it, you are choosing a reliable and efficient voltage conversion solution.
Technical Parameters
Product Model | SHJY-60VA |
Product name | 60W Step-Down Power Converter 220V to 110V |
Maximum applicable power | 60W* |
Rated Input Voltage | 220V~ |
Rated output voltage | 110V~ |
Rated capacity | 36VA* |
Rated Frequency | 50/60Hz |
Operating cycle | 30/60min |
sizes | 8.5*5.5*4.7cm |
Size (with package) | 11*10.5*8.5cm |
weights | 0.53kg |
Weight (with package) | 0.58kg |
Type | Dry-type |
Safety Device-1 | Temperature Control |
Saftey Device Data-1 | ≥80℃ |
Safety Device-2 | short circuit protector |
Materials | Copper wire winding |
Core material | Ring transformer |
certificate | CE、FCC Etc. |
Product Uses
This 60VA transformer 220V to 110V supports a wide range of small power imported appliances such as scalers, flossers, small table lamps, etc. with it.
Use in the home:
This small power 60VA transformer can support small yogurt maker, milk warmer and other small power appliances in the home.
Use in business trip:
This small voltage converter is small in size and light in weight, which is very convenient to carry when you are traveling. It can support the use of small power appliances such as tooth cleaner, tooth flosser and so on.
Product Operate Guide
Ensuring the safe, stable and efficient operation of a power transformer is essential for protecting equipment, preventing malfunctions and safeguarding users. Therefore, it is essential to follow certain usage precautions and processes when using this 60VA transformer 220V to 110V.
Power transformer precautions
1, waterproof and moistureproof:
As this voltage converter is designed to pass through the internal core accessories, in order to achieve good heat dissipation, its shell is not a large area of waterproof treatment. Therefore, when in use should ensure that it is away from water sources to prevent water intrusion into the interior of the transformer, so as not to cause short circuits or other safety accidents.
2, heat dissipation and ventilation:
Voltage converter may produce a certain amount of heat during operation, which is a normal phenomenon. In order to maintain its normal operating temperature, the heat sink behind the voltage converter should not be blocked to ensure air circulation to help dissipate heat. If the power transformer is found to be abnormally hot or emit a burning odor during use, it should be stopped immediately.
3. Power-on inspection:
Before the first power-on use, the power transformer should be fully inspected. Ensure that the appearance of the machine is intact and undamaged, and the parts are fixed securely. At the same time, the first boot should pay attention to whether there is a strange sound or abnormal situation, if there should be stopped immediately to check.

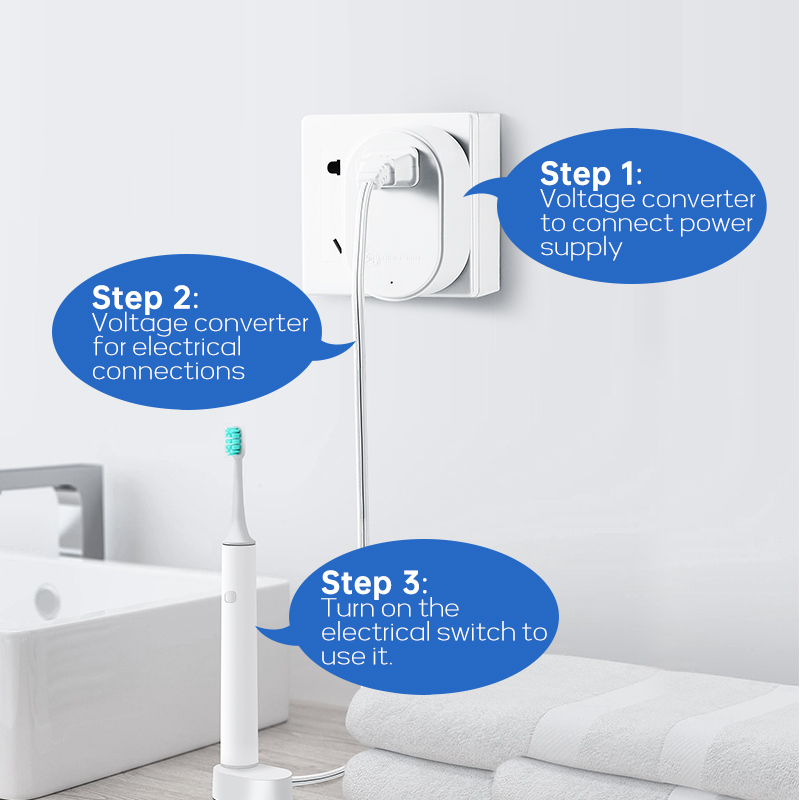

Power transformer use process:
1, check whether the appearance of the voltage converter is complete and spare parts are fixed;
2, the voltage converter input plug connected to the voltage of 220V power supply;
3, click the machine on the key, the voltage converter energized;
4, the 110V small power imported appliances connected to this 60W small voltage converter, and then turn on the normal use can be.
FAQ
1、What certificates do your products have?
*Our transformer products have obtained a number of international and domestic certificates, including but not limited to CE certification, ROHS certification, FCC certification and so on. These certifications ensure that our products comply with international standards in terms of electrical safety, environmental protection and electromagnetic compatibility.
2、What products does this transformer support?
*This transformer mainly supports the use of 110V electrical equipment, including but not limited to teeth washer, flosser, breast pump, milk warmer and other small household appliances.
3、What after-sales service do you have?
*We provide comprehensive after-sales service, including product consultation, use guidance, fault repair and so on. Our customer service team will be ready to answer your questions and provide technical support. In addition, we also provide warranty service for a certain period of time to ensure your experience.
4、How do I choose the right transformer for my appliance?
*When choosing the right transformer for your appliance, you first need to consider the rated voltage and power of your appliance. Ensure that the output voltage and power of the selected transformer match your appliances, and it is recommended that the power of the appliances should not exceed 70% of the total power of the transformer to ensure that the process of use will not be caused by too much current at the time of switching on the overloaded use. Secondly, consider the frequency and duration of use of appliances to ensure that the selected transformer can provide stable power output.
5、What do I need to do before choosing a transformer?
* Before selecting a transformer, you need to know the rated voltage and power of your appliances in order to purchase the right transformer. In addition, you also need to understand the power supply voltage in your area to ensure that the selected transformer can work properly. Also, consider the environment and frequency in which the appliance will be used so that you can choose the right type and brand of transformer. Finally, get information about the brands and prices of transformers available in the market in order to make the right buying decision.
