60VA Voltage Converter 220V To 110V Power Transformer. Buck Power Converter. Made of Pure Copper Material.
You are here: Home » Products » Voltage Converter Transformer(Copper) » 60VA Voltage Converter 220V To 110V Power Transformer. Buck Power Converter. Made of Pure Copper Material.

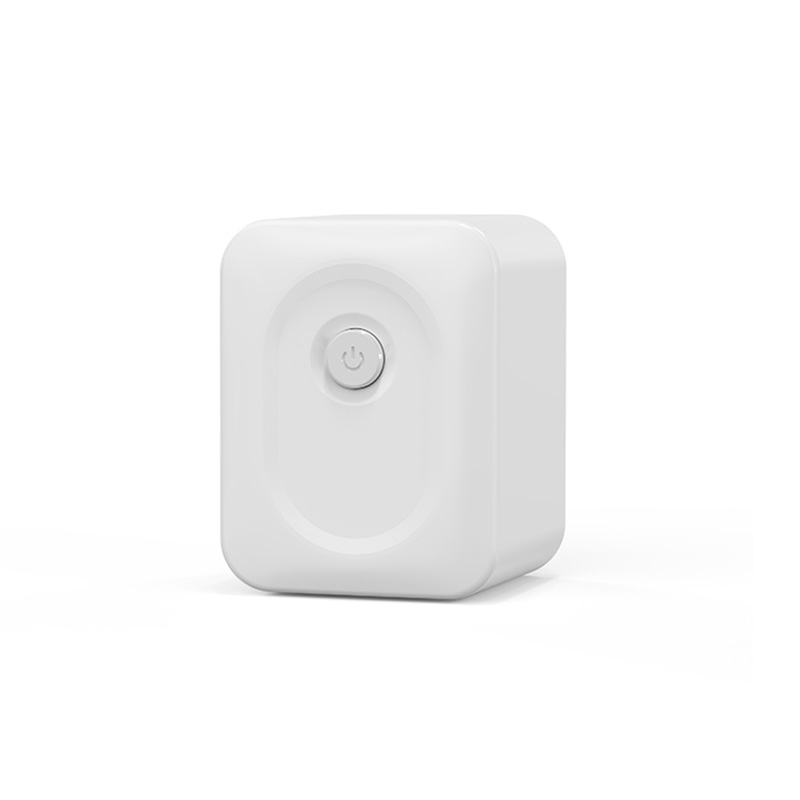

60VA Voltage Converter 220V To 110V Power Transformer. Buck Power Converter. Made of Pure Copper Material.

5 0 Reviews
This 60VA low-power step-down transformer converts 220V to 110V, so that appliances made in the USA/Canada, where the voltage is 110V, can be used in areas where the voltage is 220V.
  • JE-60VA

  • ShunHong

  • E61

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

Product Advantage

Pure copper wire raw material manufacturing:
Copper wire, with its excellent electrical conductivity, high mechanical strength, excellent thermal conductivity and strong oxidation resistance, plays an important role in the manufacture of transformer power converter. These characteristics enable copper wires to significantly improve the operating efficiency, stability and service life of voltage converters. Therefore, in the field of power transformer manufacturing, copper wire is undoubtedly an extremely high-quality manufacturing material.

Voltage regulator output:
This step-down power transformer has excellent voltage conversion function, which can stably convert 220V voltage to 110V voltage. During operation, its stable voltage output can ensure the normal operation of the equipment, while improving the working efficiency of the equipment, effectively protecting the equipment and improving energy efficiency.

Flame-retardant housing, safe:
This voltage converter housing is made of flame retardant material and can withstand temperatures above 900 degrees without burning. The application of flame retardant materials greatly enhances the safety of the power converter and provides users with a more reliable guarantee.

Small and portable, easy to use:
As a small power transformer with a fixed power of 60VA, the voltage converter is small in size and light in weight to 0.37 kg, making it ideal for travel and other activities requiring frequent movement. Whether it is for business or travel, it can be easily carried, bringing great convenience to users.

One-button switch, easy to operate:
This small power converter is equipped with a one-button switch function, which allows the user to turn the power on and off with a single tap. There is no need to plug and unplug the power converter frequently, and the operation is easier and faster, which greatly improves the user experience.

Technical Parameters

Product Model JE-60VA
Product name 60W Transformer 220V to 110V
Maximum applicable power 60W*
Rated Input Voltage 220V~
Rated output voltage 110V~
Rated capacity 36VA*
Rated Frequency 50/60Hz
Operating cycle 30/60min
sizes 7.3*5.6*5cm
Size (with package) 10.5*10*9cm
weights 0.37kg
Weight (with package) 0.41kg
Type Dry-type
Safety Device-1 Temperature Control
Saftey Device Data-1 ≥80℃
Safety Device-2 short circuit protector
Materials Copper wire winding
Core material Ring transformer
certificate CE、FCC Etc.

Product Uses

This 60VA transformer 220V to 110V supports a wide range of small power imported appliances such as scalers, flossers, small table lamps, etc. with it.

Use in the home:
This small power 60VA transformer can support small yogurt maker, milk warmer and other small power appliances in the home.

Use in business trip:
This small voltage converter is small in size and light in weight, which is very convenient to carry when you are traveling. It can support the use of small power appliances such as tooth cleaner, tooth flosser and so on.

Product Operate Guide

Ensuring the safe, stable and efficient operation of a power transformer is essential for protecting equipment, preventing malfunctions and safeguarding users. Therefore, it is essential to follow certain usage precautions and processes when using this 60VA transformer 220V to 110V.

Power transformer precautions
1, waterproof and moistureproof:
As this voltage converter is designed to pass through the internal core accessories, in order to achieve good heat dissipation, its shell is not a large area of waterproof treatment. Therefore, when in use should ensure that it is away from water sources to prevent water intrusion into the interior of the transformer, so as not to cause short circuits or other safety accidents.

2, heat dissipation and ventilation:
Voltage converter may produce a certain amount of heat during operation, which is a normal phenomenon. In order to maintain its normal operating temperature, the heat sink behind the voltage converter should not be blocked to ensure air circulation to help dissipate heat. If the power transformer is found to be abnormally hot or emit a burning odor during use, it should be stopped immediately.

3. Power-on inspection:

Before the first power-on use, the power transformer should be fully inspected. Ensure that the appearance of the machine is intact and undamaged, and the parts are fixed securely. At the same time, the first boot should pay attention to whether there is a strange sound or abnormal situation, if there should be stopped immediately to check.


Power transformer use process:
1, check whether the appearance of the voltage converter is complete and spare parts are fixed;
2, the voltage converter input plug connected to the voltage of 220V power supply;
3, click the machine on the key, the voltage converter energized;
4, the 110V small power imported appliances connected to this 60W small voltage converter, and then turn on the normal use can be.

FAQ

1、What certificates do your products have?
*Our transformer products have obtained a number of international and domestic certificates, including but not limited to CE certification, ROHS certification, FCC certification and so on. These certifications ensure that our products comply with international standards in terms of electrical safety, environmental protection and electromagnetic compatibility.

2、What products does this transformer support?
*This transformer mainly supports the use of 110V electrical equipment, including but not limited to teeth washer, flosser, breast pump, milk warmer and other small household appliances.

3、What after-sales service do you have?
*We provide comprehensive after-sales service, including product consultation, use guidance, fault repair and so on. Our customer service team will be ready to answer your questions and provide technical support. In addition, we also provide warranty service for a certain period of time to ensure your experience.

4、How do I choose the right transformer for my appliance?
*When choosing the right transformer for your appliance, you first need to consider the rated voltage and power of your appliance. Ensure that the output voltage and power of the selected transformer match your appliances, and it is recommended that the power of the appliances should not exceed 70% of the total power of the transformer to ensure that the process of use will not be caused by too much current at the time of switching on the overloaded use. Secondly, consider the frequency and duration of use of appliances to ensure that the selected transformer can provide stable power output.

5、What do I need to do before choosing a transformer?
* Before selecting a transformer, you need to know the rated voltage and power of your appliances in order to purchase the right transformer. In addition, you also need to understand the power supply voltage in your area to ensure that the selected transformer can work properly. Also, consider the environment and frequency in which the appliance will be used so that you can choose the right type and brand of transformer. Finally, get information about the brands and prices of transformers available in the market in order to make the right buying decision.
